Box Cox Y Transformation

A Box-Cox power transformation is used to transform the response so that the usual regression assumptions of normality and homogeneity of variance are more closely satisfied. The transformed response can then be fit using a regression model. However, you can also use the Box-Cox power transformation to transform a variable for other reasons. This transformation is appropriate only when the response, Y, is strictly positive.

A commonly used transformation raises the response to some power. Box and Cox (1964) formalized and described this family of power transformations. The formula for the transformation is constructed to provide a continuous definition in terms of the parameter λ, and so that the error sums of squares are comparable. Specifically, the following equation provides the family of transformations:

Here,

denotes the geometric mean.

The Box Cox Y Transformation option fits transformations from λ = –2 to 2 in increments of 0.2. To choose a proper value of λ, the likelihood function for each of these transformations is computed. They are computed under the assumption that the errors are independent and normal with mean zero and variance σ2. The value of λ that maximizes the likelihood is selected. This value also minimizes the SSE over the selected values of λ.

The Box-Cox Transformations report displays a plot showing the sum of squares error (SSE) against the values of λ.

The Box Cox Transformations report provides the following options:

Refit with Transform

Enables you to specify a value for lambda to define a transformed Y variable and then provides a least squares fit to the transformed variable.

Replace with Transform

Enables you to specify a value for lambda to define a transformed Y variable and then replaces the existing least squares fit with a fit to the transformed variable. If you have multiple responses, Replace with Transform only replaces the report for the response you are transforming.

Save Best Transformation

Creates a new column in the data table and saves the formula for the best transformation.

Save Specific Transformation

Enables you to specify a value for lambda and creates a column in the data table with the formula for your specified transformation.

Table of Estimates

Creates a new data table containing parameter estimates and SSE values for all λ from –2 to 2, in increments of 0.2.

Example of Box-Cox Y Transformation

Select Help > Sample Data Library and open Reactor.jmp.

Select Analyze > Fit Model.

Select Y and click Y.

Make sure that the Degree box has a 2 in it.

Select F, Ct, A, T, and Cn and click Macros > Factorial to Degree.

Click Run.

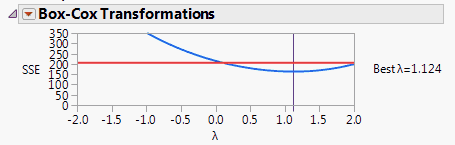

Box Cox Y Transformation

The plot shows that the best values of λ are approximately between 1.0 and 1.2. The value that JMP selects, using its 0.2 unit grid of λ values, is 1.124.

(Optional) To see the SSE values used to construct the graph, select Table of Estimates.
