Fit Curve Options

Fit Curve Model Formulas provides the formulas for the models on the Fit Curve red triangle menu.

Fit Curve Model Formulas
Model	Formula

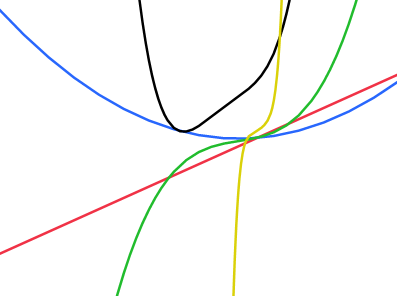

Polynomials	where k is the order of the polynomial. These models can also be fit using the Fit Model and Fit Y by X platforms.

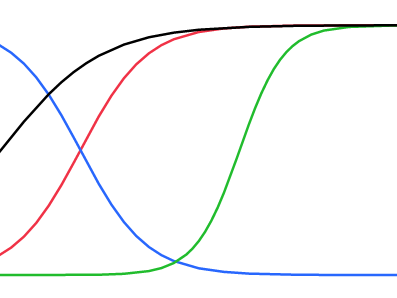

Logistic 2P	a = Growth Rate b = Inflection Point Available only when all response values are between zero and one.

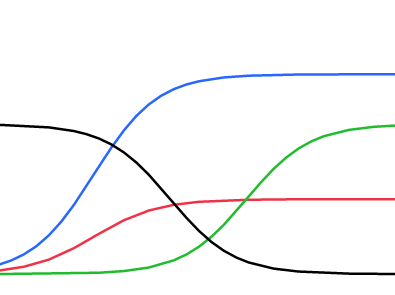

Logistic 3P	a = Growth Rate b = Inflection Point c = Asymptote

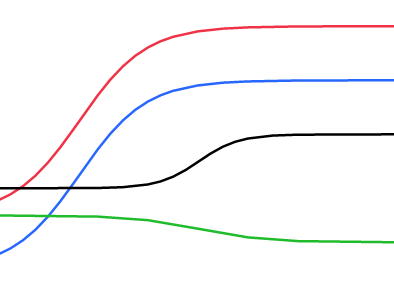

Logistic 4P	a = Growth Rate b = Inflection Point c = Lower Asymptote d = Upper Asymptote

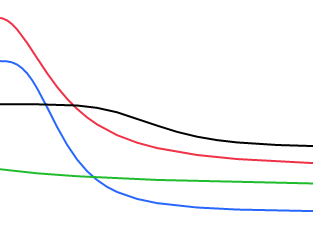

Logistic 4P Rodbard	a = Growth Rate b = Inflection Point c = Lower Asymptote d = Upper Asymptote Available only when the regressor values are positive.

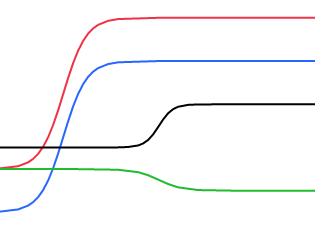

Logistic 4P Hill	a = Growth Rate b = Inflection Point c = Lower Asymptote d = Upper Asymptote

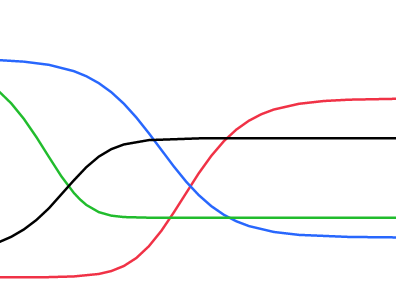

Logistic 5P	a = Growth Rate b = Inflection Point c = Asymptote 1 d = Asymptote 2 f = Power

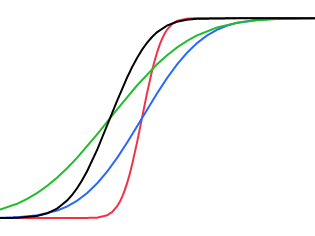

Probit 2P	a = Growth Rate b = Inflection Point Φ = Normal Distribution CDF Available only when all response values are between zero and one.

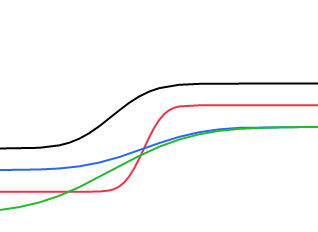

Probit 4P	a = Growth Rate b = Inflection Point c = Asymptote 1 d = Asymptote 2 Φ = Normal Distribution CDF

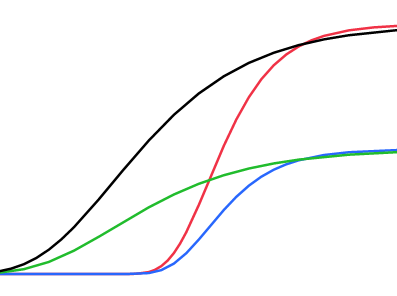

Gompertz 3P	a = Asymptote b = Growth Rate c = Inflection Point

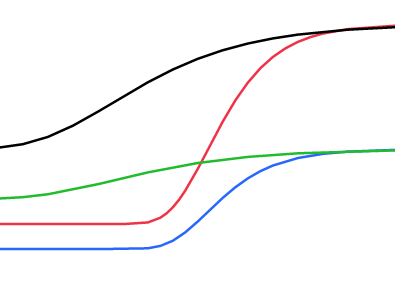

Gompertz 4P	a = Lower Asymptote b = Upper Asymptote c = Growth Rate d = Inflection Point

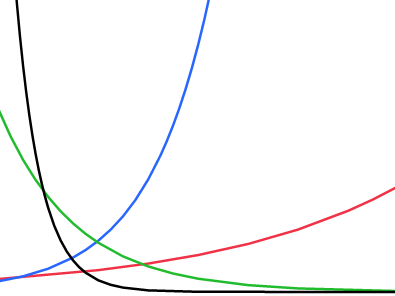

Exponential 2P	a = Scale b = Growth Rate

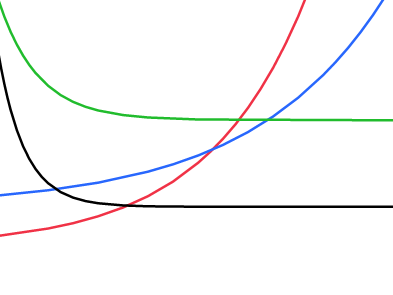

Exponential 3P	a = Asymptote b = Scale c = Growth Rate

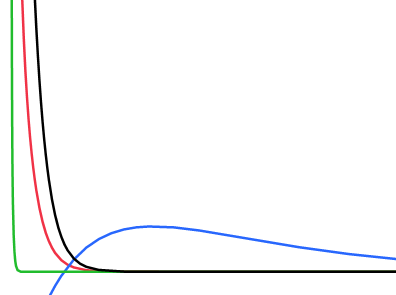

Biexponential 4P	a = Scale 1 b = Decay Rate 1 c = Scale 2 d = Decay Rate 2 Available only when the response values are positive.

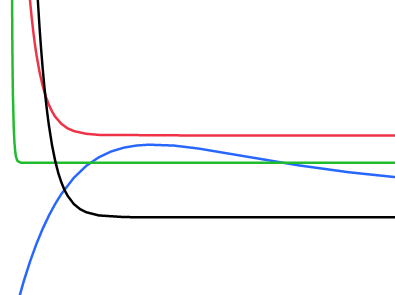

Biexponential 5P	a = Asymptote b = Scale 1 c = Decay Rate 1 d = Scale 2 f = Decay Rate 2

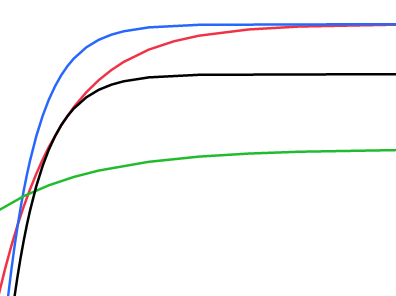

Mechanistic Growth	a = Asymptote b = Scale c = Growth Rate

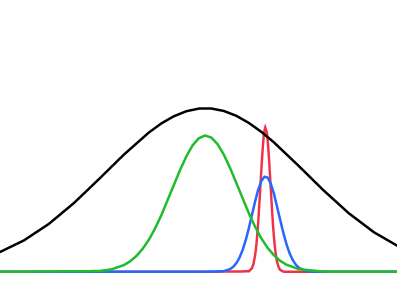

Gaussian Peak	a = Peak Value b = Critical Point c = Growth Rate

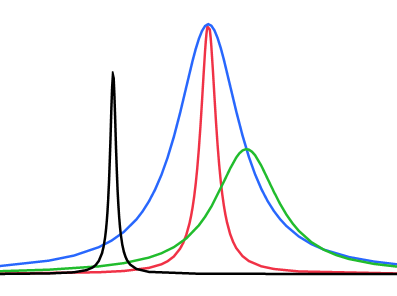

Lorentzian Peak	a = Peak Value b = Growth Rate c = Critical Point

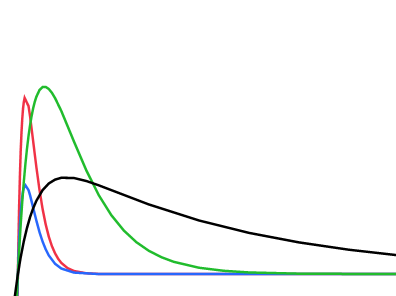

One Compartment Oral Dose	a = Area Under Curve b = Elimination Rate c = Absorption Rate Available only when the response values and the regressor values are all positive.

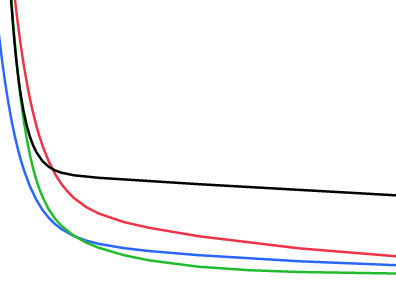

Two Compartment IV Bolus Dose	α = β = a = Initial Concentration b = Transfer Rate In c = Transfer Rate Out d = Elimination Rate Available only when the response values and the regressor values are all positive.

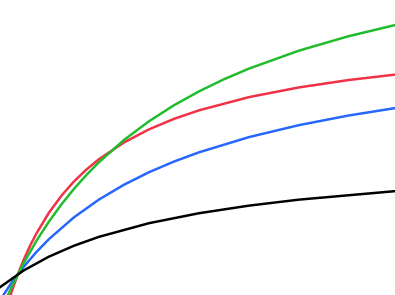

Michaelis-Menten	a = Max Reaction Rate b = Inverse Affinity Available only when the response values and the regressor values are all positive.
