Create a Web Report

The View > Create Web Report option creates a web page in which reports, descriptive text, and graphics are displayed. The web page, graphics, and support files are saved in the directory that you specify so that you can zip the files and send them to another user. This feature is particularly helpful for non JMP users.

Some graphs can be displayed as interactive HTML (for example, bubble plots or background maps). When you click on the thumbnail of the graph in a web report, the interactive graph appears in a new web page.

To generate a web report, follow these steps:

1.

Select Help > Sample Data Library and open SATByYear.jmp.

2.

Run the Graph Builder Map and Bubble Plot by State scripts.

3.

From any JMP window, select View > Create Web Report.

In the Select Reports window that appears, you can select one or more reports to display in the web page. In this example, both reports are displayed in the web page because they are not selected in this window.

Note that the Folder Name box indicates the current date and time. The web report files are saved in this folder.

4.

5.

Enter the descriptions shown in Customizing the Web Report.

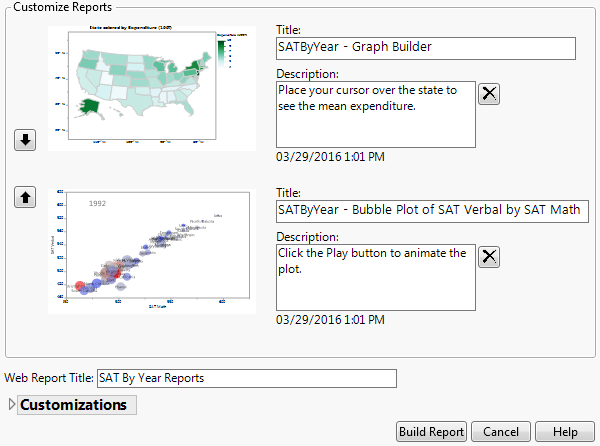

Customizing the Web Report

Note: The reports are in the order you created them. In this example, the Graph Builder Map script was run first, so the map is the first report. Use the arrows next to the reports to rearrange them.

6.

Enter SAT By Year Reports in the Web Report Title box.

7.

Click Build Report.

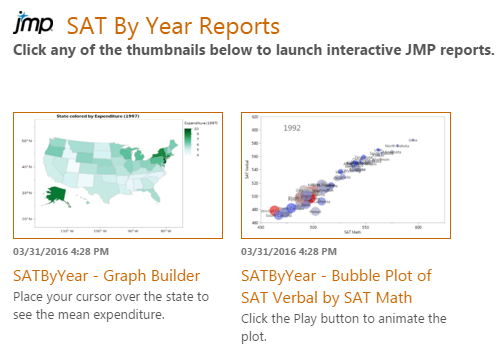

The web page opens in your default browser.

8.

Click on one of the thumbnails to open the report in an interactive web page. See http://www.jmp.com/support/help/InteractiveHTML/13/ShareJMPReports.shtml for details about working with interactive reports.

Web Report Options

Determines the layout of the reports.

Shows the reports in rows.

Shows the reports in a column with large thumbnail graphics.

Shows the reports in a column with small thumbnail graphics.

Enables you to specify a CSS file to format the web page. The CSS file is copied into a subdirectory called _css. The link to the CSS file is relative so that you can send the report and support files to another user and maintain the CSS formatting.

Specifies the color of the web page, headings, and borders. The default web page has a white background, orange headings, and blue borders.

Specifies an image to display along with the reports. Click the up or down arrow next to the image to move it above or below the reports.

Toggle Timestamp

Shows or hides the date and time at which the web page was generated.

•
