Example of a Normal Quantile Plot
1.
Select Help > Sample Data Library and open Big Class.jmp.
2.
Select Analyze > Fit Y by X.
3.
Select height and click Y, Response.
4.
Select sex and click X, Factor.
5.
Click OK.
6.
From the red triangle menu, select Normal Quantile Plot > Plot Actual by Quantile.

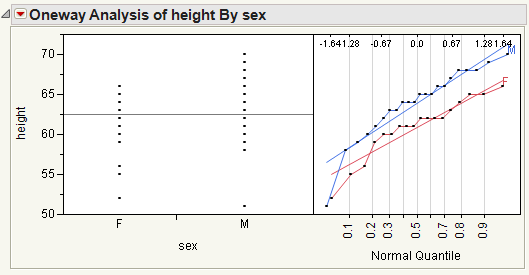

Example of a Normal Quantile Plot
From Example of a Normal Quantile Plot, notice the following:
•
The Line of Fit appears by default.
•
The data points track very closely to the line of fit, indicating a normal distribution.
