Example of the Association Analysis Platform
This example uses the Grocery Purchases.jmp sample data table, which contains transactional data reported by a grocery store. The data table lists the items purchased by 1001 customers, each assigned a unique customer ID. You want to explore the associations among items in order to identify patterns in consumer behavior.
1.
Select Help > Sample Data Library and open Grocery Purchases.jmp.
2.
Select Analyze > Screening > Association Analysis.
3.
Select Product and click Item.
4.
Select Customer ID and click ID.
5.
Click OK.

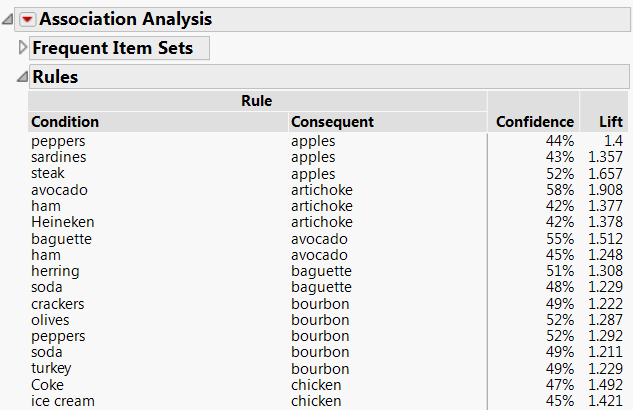

Association Analysis Report
The fourth entry in the Rules report table indicates that 58% of customers who bought an avocado also bought an artichoke. The value of Lift is 1.908, indicating that there is a likely dependency. You want to verify that avocados and artichokes occur in a significant portion of transactions.
6.
Click the disclosure icon next to Frequent Item Sets.

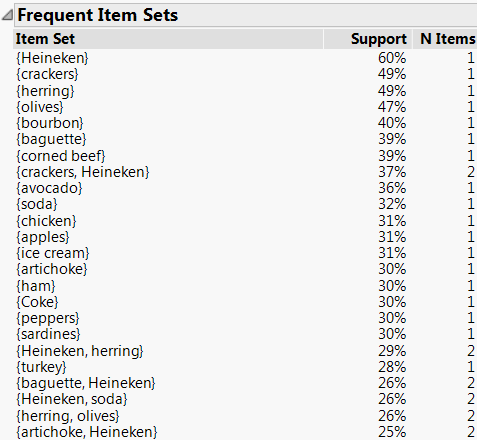

Frequent Item Sets Report
The Frequent Item Sets report shows that 36% of customers purchased avocados. The Rules report in Association Analysis Report shows that 58% of these customers also bought artichokes. Because of the large proportion of customers who follow this behavior, the grocery store management might use this information to strategically locate avocados and artichokes.
You also decide to look at the association rules with the highest lift.
7.
Right-click in the Rules report table and select Sort By Column.
The Select Columns window appears.
8.
Select Lift and click OK.
The Rules table is sorted by decreasing values of lift. Notice that the second association rule has a lift of 6.912 and 97% confidence. You want to verify that both the condition set, {Coke, Heineken, sardines}, and the consequent item set, {chicken, ice cream}, have adequate support.
9.
Right-click in the Frequent Item Sets report and select Sort By Column.
The Select Columns window appears.
10.
Select Item Set and the check the ascending order option.
11.
Click OK.
The Frequent Item Sets table is sorted alphabetically by item set. Scroll through the list to see that the condition item set, {Coke, Heineken, sardines}, has 12% support and that the consequent item set, {chicken, ice cream}, has 14% support. This association rule has high lift, but represents fewer transactions than the first association rule that you examined.
