On Windows: C:/Users/<user name>/AppData/Roaming/SAS/JMP/Maps
On Macintosh: /Users/<user name>/Library/Application Support/JMP/Maps
Note: On Windows, in JMP Pro, the “JMP” folder is named “JMPPro”. In JMP Shrinkwrap, the “JMP” folder is named “JMPSW”.
The first column in both files must be the ascending, numeric Shape ID variable. The -Name file can contain any other columns. The shapes are built by rows. The XY coordinates have to go around the shape rather than just define the convex hull of the shape.
For the Map Role column property, columns that are marked with the Shape Name Definition are searched for shape identification and must contain unique values.
If you import an Esri SHP file, it is opened in the correct format. -Name files commonly have a .dbf extension. For more information, see Esri® Shapefiles.
You can specify the attributes and properties of a column in a data table within the Column Info window in Column Properties. The Map Role property is set for a column like other column properties in the Column Info window.
If the custom boundary files reside in an alternate location, specify the Map Role property in the -Name file and in the data table that you are analyzing.
The columns that contain the Map Role property must contain the same boundary names, but the column names can be different.
2.
Select Shape Name Definition below Map Role.
3.

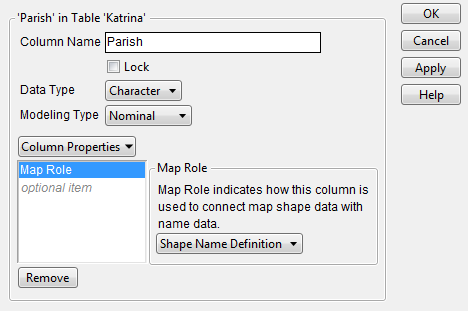

Figure 14.10 Shape Name Definition Example
2.
Select Shape Name Use below Map Role.
3.
Next to Map name data table, click to browse to a -Name map data table. You can enter the relative or absolute path.
4.
From the Shape definition column list, select the column in the map data table whose values match those in the selected column.

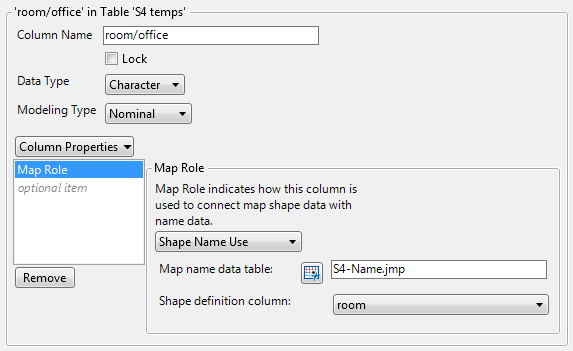

Figure 14.11 shows an example of the room/office column in the S4 Temps.jmp sample data table.
Figure 14.11 Shape Definition Column Example
5.
To use spaces as field separators, deselect Field Punctuation. To use degrees, minutes, and seconds symbols, select Field Punctuation.
Esri® Shapefiles
The .shp file contains sequences of points that make up polygons. When opened with JMP, a .shp file is imported as a JMP table.
The Shape column is added during import to uniquely identify each geographic region. Each coordinate point is in a separate row.
The Part column to indicate discontiguous regions, and the XY coordinates (in latitude and longitude degrees).
JMP supports two-dimensional .shp files (no elevation information).
You add a Shape ID column to the .dbf table, which maps to the Shape column in the .shp file. Add any number of columns that provide common names or values to refer to specific regions.
1.
Open the .shp file in JMP.
2.
Make sure that the Shape column is the first column in the .shp file. Add formatting and axis settings for the X and Y columns (optional). Graph Builder uses those settings for the X and Y axes.
3.
Save the .shp file as a JMP data table to the Maps folder with a name that ends in -XY.jmp.
4.
Open the .dbf file.
5.
Add a Shape ID column as the first column in the table. This column should be the row numbers from 1 to n, the number of rows in the data table.
Note: You can use Cols > New Columns > Initialize Data > Sequence Data) to fill the column with sequential numbers.
6.
Assign the Map Role column property to any column that you use for place names in the Shape role of Graph Builder. To do this, right-click at the top of the column and select Column Properties > Map Role.
7.
Select Shape Name Definition from the drop-down box in the property definition.
Windows: C:/Program Files/SAS/JMP/14/Maps/
Macintosh: /Library/Application Support/JMP/14/Maps
On Windows: C:/Users/<user name>/AppData/Roaming/SAS/JMP/Maps
On Macintosh: /Users/<user name>/Library/Application Support/JMP/Maps
Note: On Windows, in JMP Pro, the “JMP” folder is named “JMPPro”. In JMP Shrinkwrap, the “JMP” folder is named “JMPSW”.
SAS/GRAPH® Map Data Sets
data WORK.BELIZE;
keep id segment x y;
rename segment=Part;
set maps.belize;
if x NE .;
if y NE .;
y=lat*(180/constant('pi'));
x=-long*(180/constant('pi'));
run;
The next step is to import the matching feature data set (in this case: MAPS.BELIZE2). After importing the feature data set, move the ID column to the first position in the data table. Then assign the Map Role column property to the columns that you use for place names in the Shape role of Graph Builder. To do this, right-click the top of the column and select Column Properties > Map Role. Then select Shape Name Definition from the drop-down box in the property definition. For MAPS.BELIZE2, use the IDNAME column. Save the feature data table as Belize-Name.jmp.
To convert SAS maps, download the SAS to JMP Map Converter add-in from the JMP File Exchange page. For each map, the add-in reads the data from the two SAS map tables, rearranges and formats the data and then places it into the two JMP map tables.
