The sample data table Diesel Ship Engines.jmp contains data on engine repair times for two ships (Grampus4 and Halfbeak4) that have been in service for an extended period of time. See Meeker and Escobar (1998). You want to examine the progression of repairs and gain a sense of how often repairs might need to be done in the future. These observations can help you decide when an engine should be taken out of service.
1.
Select Help > Sample Data Library and open Reliability/Diesel Ship Engines.jmp.
3.
Select Analyze > Reliability and Survival > Recurrence Analysis.

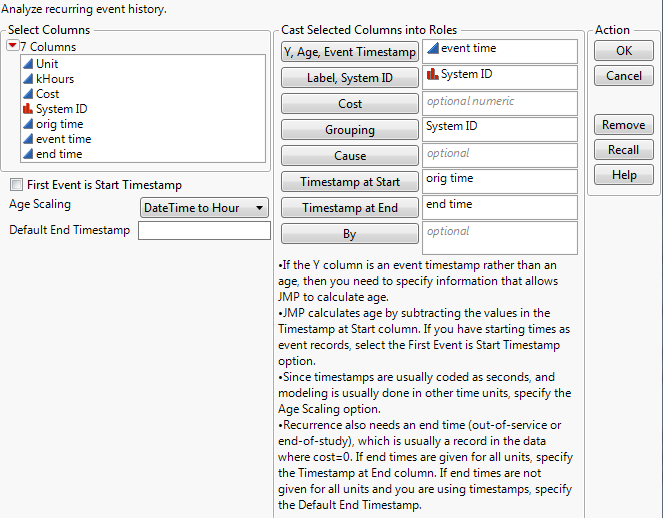

Figure 5.11 Diesel Ship Engines Launch Window
5.

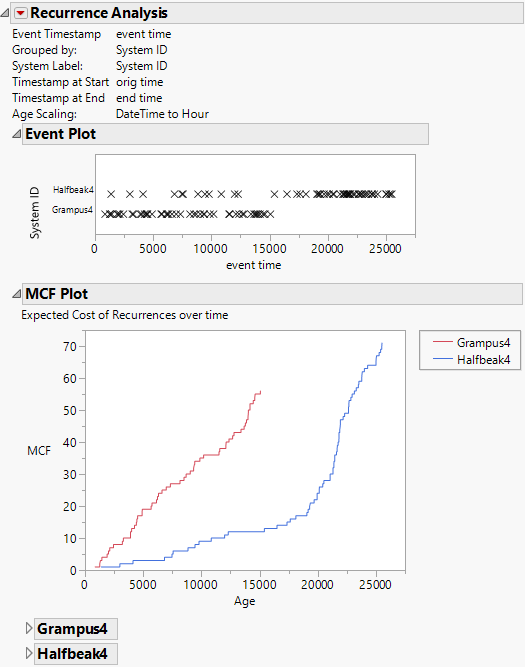

Figure 5.12 Diesel Ship Engines Report
6.
Select Fit Model from the red triangle menu next to Recurrence Analysis.
7.
In the Recurrence Model Specification, select the Loglinear Nonhomogeneous Poisson Process.
8.
Add the System ID column as both a Scale Effect and a Shape Effect.
9.
Click Run Model.

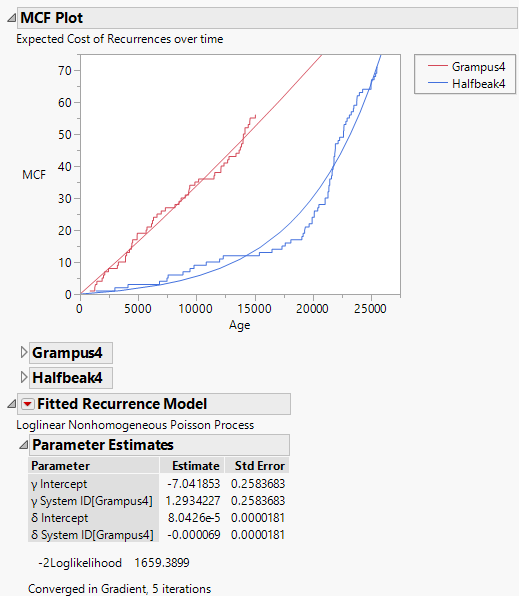

Figure 5.13 Diesel Ship Engines Fitted Model
10.
Select Profiler from the red triangle menu next to Fitted Recurrence Model.

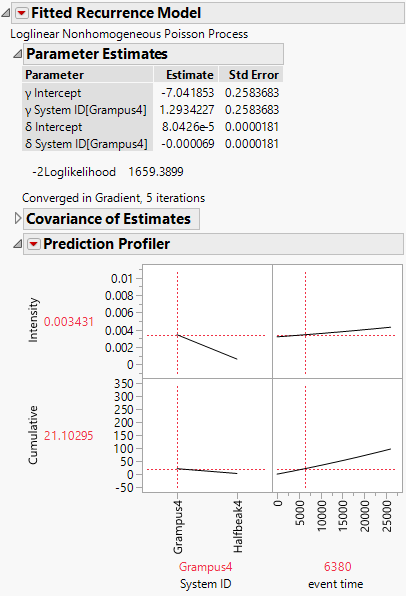

Figure 5.14 Diesel Ship Profiler

Help created on 10/11/2018
