Example Using the Reliability Block Diagram Platform|
1.
|
Select Analyze > Reliability and Survival > Reliability Block Diagram.
|

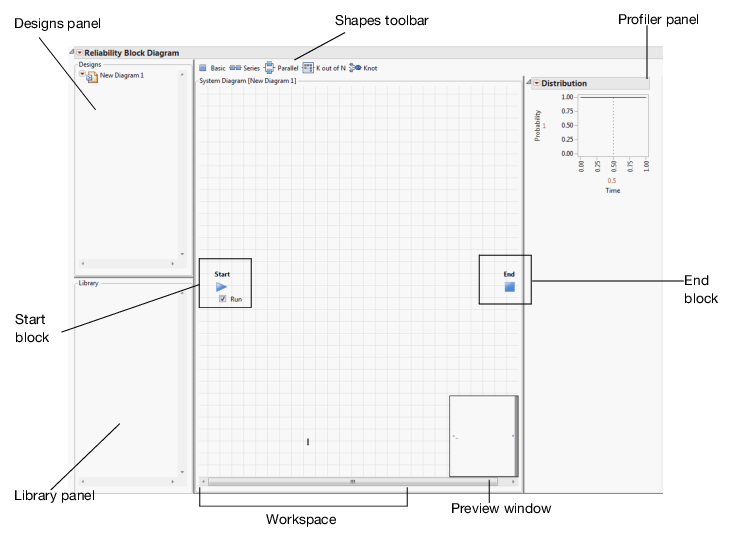

Figure 11.2 New Reliability Block Diagram
|
3.
|
Deselect Run in the Start block.
|
With Run selected, the platform updates the diagram’s reliability calculations after each change to the system diagram. These changes can include adding or deleting components, changing a component’s configuration, and adding or deleting a connection.
With Run deselected, the platform does not update the reliability calculations after any changes.
