Fit the Full Response Surface Model
1.
Select Help > Sample Data Library and open Design Experiment/Custom RSM.jmp.
2.
Select Analyze > Fit Model.
Because the data table contains a Model script, the Model Specification window is filled out as specified in the Model script. Note the following:
–
Main effects appear in the Construct Model Effects list with a &RS suffix, indicating that the Response Surface macro has been applied.
–
The effects are those for a full response surface in the three predictors X1, X2, and X3.
–
Because the model contains terms with the &RS suffix, the analysis results will include a Response Surface report.

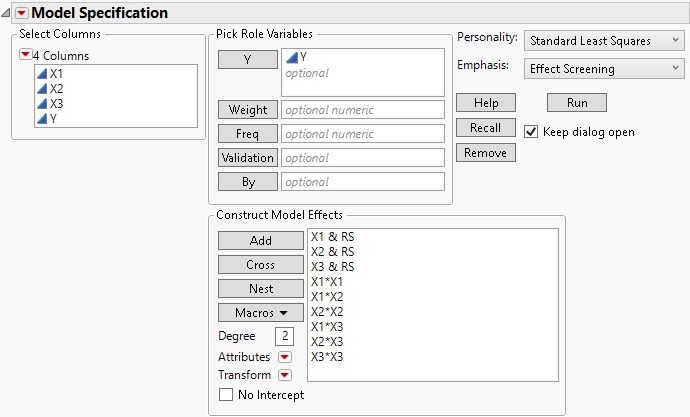

Figure 4.9 Fit Model Launch Window for the Response Surface Analysis
3.
Click Run.
