Create a Web Report
The File > Publish option creates a web page in which reports, descriptive text, and graphics are displayed. The web page, graphics, and support files are saved in the directory that you specify so that you can zip the files and send them to another user. This feature is particularly helpful for non JMP users.
Some graphs can be displayed as interactive HTML (for example, bubble plots or background maps). When you click on the thumbnail of the graph in a web report, the interactive graph appears on a new web page.
To generate a web report, follow these steps:
1.
Select Help > Sample Data Library and open SATByYear.jmp.
2.
Run the Graph Builder Map and Bubble Plot by State scripts.
3.
From any JMP window, select File > Publish.
In the Select Reports window that appears, you can select one or more reports to display in the web page. In this example, both reports are displayed in the web page because they are not selected in this window.
Note that the Folder Name box indicates the current date and time. The web report files are saved in this folder.
4.
Click Next.
5.
Enter the descriptions shown in Figure 5.141.
Note: If you selected one report, you have the option of generating an index page. The index page shows a thumbnail of the report. You click the thumbnail to view the report. Figure 5.142 shows an example.

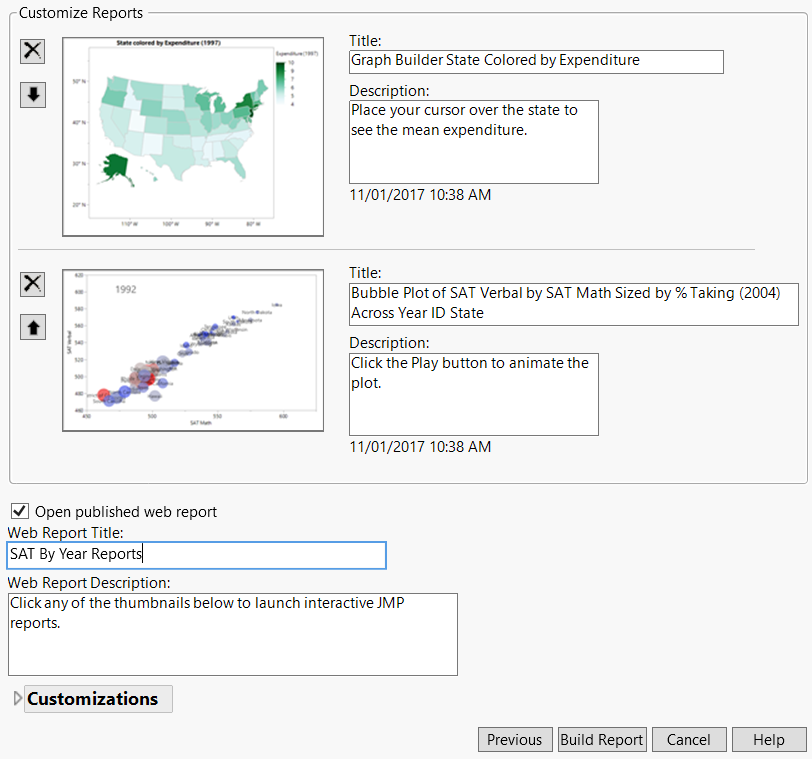

Figure 5.141 Customizing the Web Report
Note: The reports are in the order you created them. In this example, the Graph Builder Map script was run first, so the map is the first report. Use the arrows next to the reports to rearrange them. Also, after you remove a report, a Restore Reports button appears in case you want to add the report again.
6.
Enter SAT By Year Reports in the Web Report Title box.
7.
Click Build Report.
The web page opens in your default browser.
Figure 5.142 Web Report
