This example uses the Penicillin.jmp sample data table. The data in this example comes from an experiment where 5 groups, each containing 12 rabbits, were injected with streptococcus bacteria. Once the rabbits were confirmed to have the bacteria in their system, they were given different doses of penicillin. You want to find out whether the natural log (In(dose)) of dosage amounts has any effect on whether the rabbits are cured.
1.
Select Help > Sample Data Library and open Penicillin.jmp.
2.
Select Analyze > Fit Y by X.
3.
Select Response and click Y, Response.
4.
Select In (dose) and click X, Factor.
Notice that JMP automatically fills in Count for Freq. Count was previously assigned the role of Freq.
5.

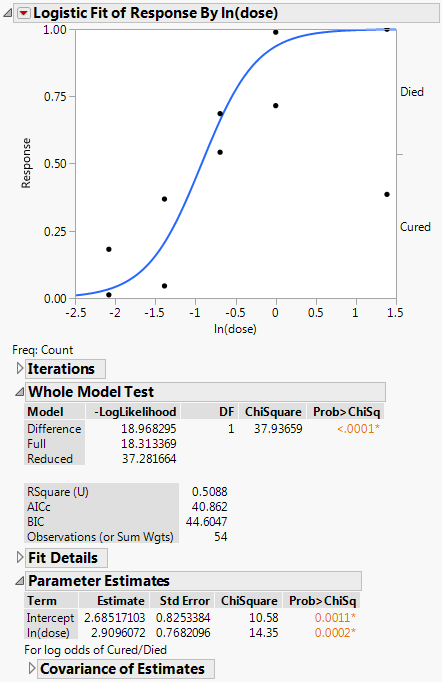

Figure 7.115 Example of Nominal Logistic Report
Tip: To change the response level that is analyzed, use the Value Ordering column property.
