Example of Saving and Running a Script

Create a Report

1.

Select Help > Sample Data Library and open Companies.jmp.

2.

Select Analyze > Distribution.

3.

Select Type and profit/emp and click Y, Columns.

4.

5.

From the red triangle menu for Type, select these options:

–

Histogram Options > Show Counts

–

Confidence Interval > 0.95

6.

From the red triangle menu for profit/emp, select these options:

–

Outlier Box Plot, to remove the outlier box plot

–

7.

From the red triangle menu for Distributions, select Stack.

Save the Script to the Data Table and Run It

1.

To save this analysis, select Save Script > To Data Table from the red triangle menu for Distributions. The new script appears in the Table panel.

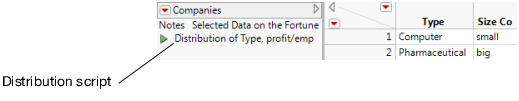

Figure 5.137 Distribution Script

2.

Close the Distribution report window.

3.

To re-create the analysis, click the green triangle next to the Distribution script.

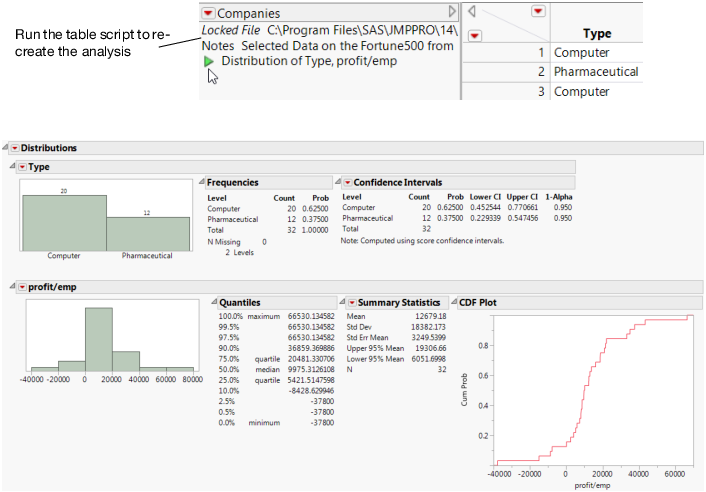

Figure 5.138 Running the Distribution Script

Tip: Right-click the table script to view more options.

•
