Example Using a Sizes Variable

Using the Cities.jmp sample data table, specify a Sizes variable to see a treemap of city sizes based on population.

1.

Select Help > Sample Data Library and open Cities.jmp.

2.

Select Graph > Legacy > Treemap.

3.

Select POP (population) and click Sizes.

4.

Select city and click Categories.

5.

The report window appears.

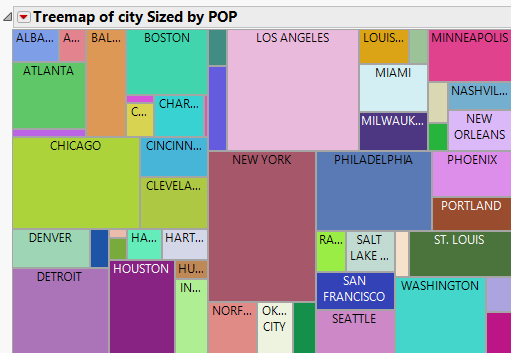

Figure 10.8 POP as Sizes Variable

•

Cities with large populations are represented by large rectangles, such as New York and Los Angeles.

•

Cities with smaller populations are represented by smaller rectangles, such as Cheyenne and Dubuque.

Some rectangles are too small to show their labels (for example, Cheyenne and Dubuque). Click on a small rectangle to select the corresponding row in the data table, where you can see the label.

•
