Example Using Two Ordering Variables

JMP Support 800.450.0135 (US)

Documentation Feedback
Your feedback is important to us. us any comments about our documentation.

Essential Graphing • Treemaps • Additional Examples of the Treemap Platform • Example Using Two Ordering Variables

•

For example, in the Cities.jmp sample data table, the X and Y columns correspond to the geographic location of the cities. Specify the X and Y columns as Ordering variables:

Select Help > Sample Data Library and open Cities.jmp.

Select Graph > Legacy > Treemap.

Select city and click Categories.

Select X and click Ordering.

The X variable corresponds to the western and eastern US states.

Select Y and click Ordering.

The Y variable corresponds to the northern and southern US states.

Click OK.

The report window appears.

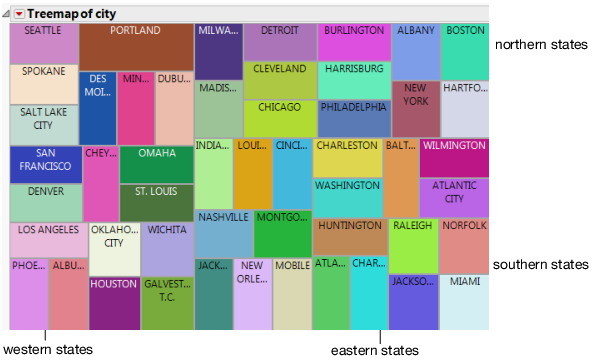

Figure 10.10 Treemap with Two Ordering Variables

The western and eastern US states are arranged horizontally, and the northern and southern US states are arranged vertically.

•
