ABCD Design

The ABCD Design is a screening design for mixtures. See Snee (1975).

To create an example ABCD design:

1. Select DOE > Classical > Mixture Design.

2. Under Factors, enter 3 for the number of additional factors to add and click Add.

3. Click Continue.

4. Click ABCD Design.

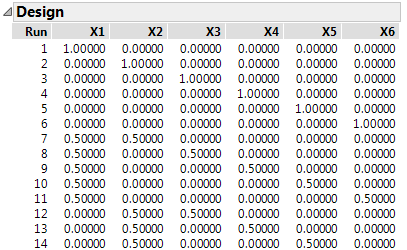

Figure 13.18 14 of the 28 Run 6 Factor ABCD Design

5. Click Make Table.
