Example of an Attribute Gauge Chart

Suppose that you have data containing pass or fail ratings for parts. Three raters, identified as A, B, and C, each noted a 0 (pass) or a 1 (fail) for 50 parts, three times each. You want to examine how effective the raters were in correctly classifying the parts, and how well the raters agreed with each other and with themselves over the course of the ratings.

1. Select Help > Sample Data Library and open Attribute Gauge.jmp.

2. Select Analyze > Quality and Process > Variability / Attribute Gauge Chart.

3. For Chart Type, select Attribute.

4. Select A, B, and C and click Y, Response.

5. Select Standard and click Standard.

6. Select Part and click X, Grouping.

7. Click OK.

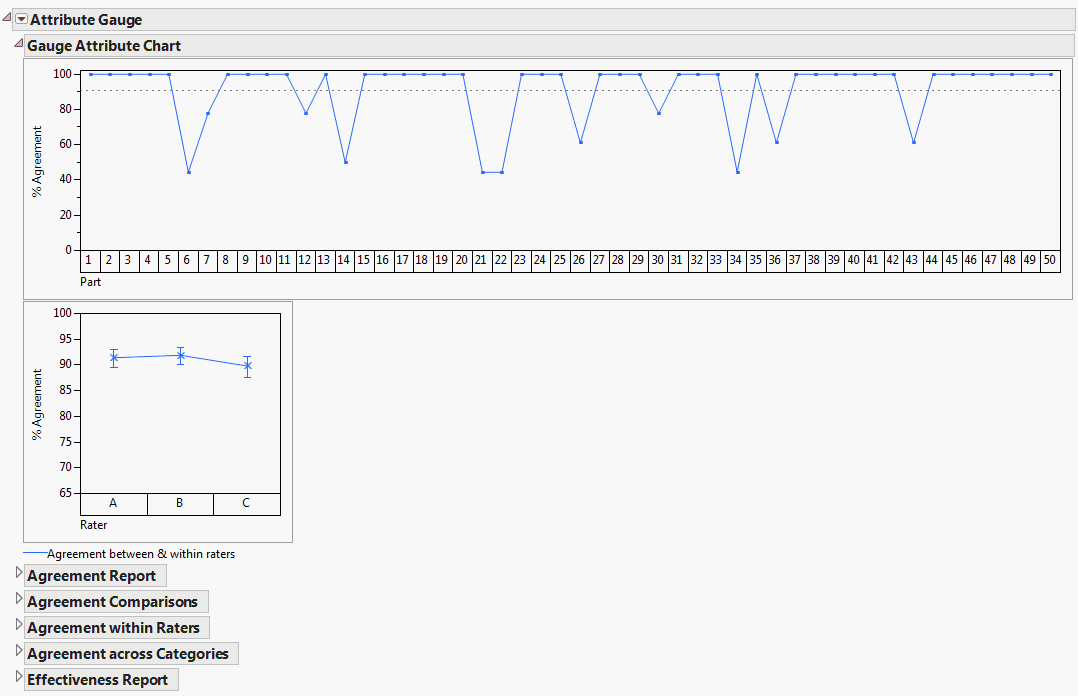

Figure 6.3 Example of an Attribute Chart

The first chart (Part) shows how well the raters agreed with each other for each part. For example, here you can see that the percent agreement dropped for part 6, 12, 14, 21, 22, and so on. These parts might have been more difficult to categorize.

The second chart (Rater) shows each rater’s agreement with him or herself and the other raters for a given part, summed up over all of the parts. In this example, it looks like the performance of the raters is relatively similar. Rater C had the lowest agreement, but the difference is not major (about 89% instead of 91%).

8. Open the Effectiveness Report and scroll down to the Conformance Report.

You can see that 0 = non-conform (fail) and a 1 = conform (pass). However in this data, it is exactly the opposite: 0 is a pass and 1 is a fail. Reverse this setting.

9. Click the Conformance Report red triangle and select Change Conforming Category.
