Fit the Full Response Surface Model

1. Select Help > Sample Data Library and open Design Experiment/Custom RSM.jmp.

2. Select Analyze > Fit Model.

Because the data table contains a Model script, the Model Specification window is filled out as specified in the Model script. Note the following:

Main effects appear in the Construct Model Effects list with a &RS suffix, indicating that the Response Surface macro has been applied.

The effects are those for a full response surface in the three predictors X1, X2, and X3.

Because the model contains terms with the &RS suffix, the analysis results will include a Response Surface report.

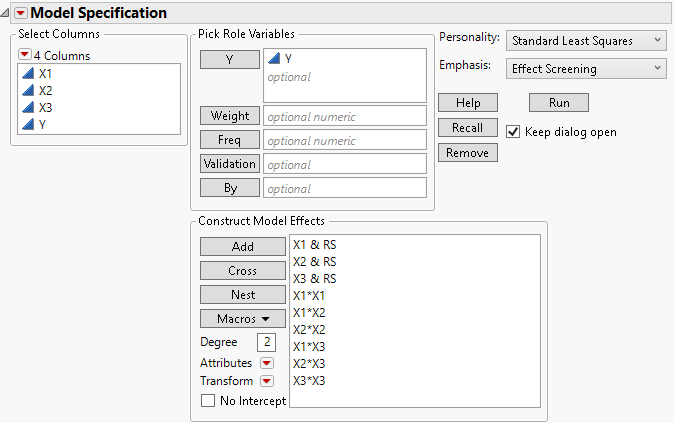

Figure 4.9 Fit Model Launch Window for the Response Surface Analysis

3. Click Run.
