Select Points in Graphs

To select a point in a graph, click the point with the arrow pointer. This selects the point as well as the corresponding row in the current data table. To select multiple points, hold down the Shift key while you select points. A point’s label appears when you place the pointer over the point with or without clicking.

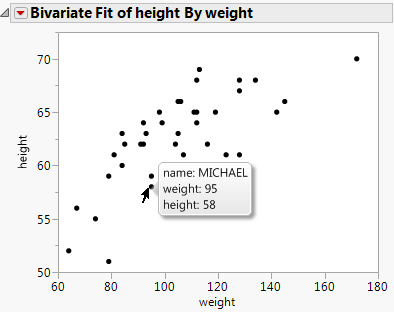

Figure 9.18 Label for a Data Point

Tips:

You can paste the contents of a label into another document. Right-click the label and select Copy. Paste the text into the other document.

A photo can be displayed in the label if you store the image in an Expression role column. See Expression Role in the The Column Info Window section.
