Example of Survival Analysis

An experiment was undertaken to characterize the survival time of rats exposed to a carcinogen in two treatment groups. The data are in the Rats.jmp sample data table. The event in this example is death. The objective is to see whether rats in one treatment group live longer (more days) than rats in the other treatment group.

1. Select Help > Sample Data Library and open Rats.jmp.

The data in the days column is the survival time. Notice that some observations are censored.

2. Select Analyze > Reliability and Survival > Survival.

3. Select days and click Y, Time to Event.

4. Select Group and click Grouping.

5. Select Censor and click Censor.

6. Click OK.

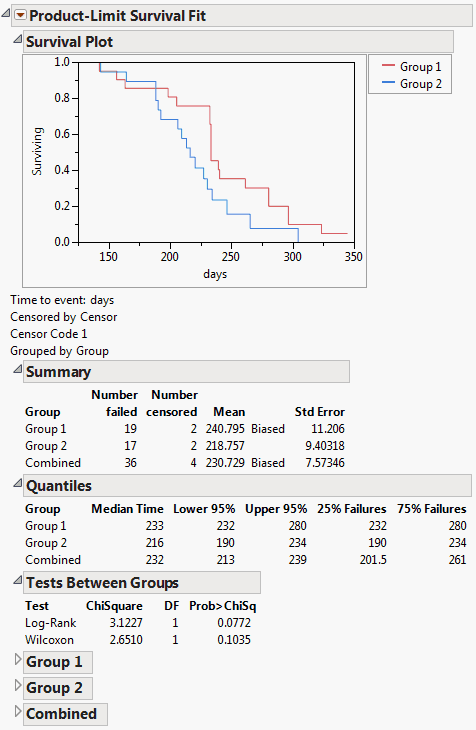

Figure 13.2 Survival Plot for Rats.jmp Data

Survival Plot for Rats.jmp Data

It appears that the rats in treatment group 1 are living longer than the rats in treatment group 2.
