Map Shape

When a column contains the names of geographical regions (such as countries, regions, states, provinces, counties), you can assign the column to the Map Shape zone. When a variable is dropped in Map Shape, Graph Builder looks for map shapes that correspond to the values of the variable and draws the corresponding map. The variable can have a column property that tells JMP where to find the map data. If not, JMP looks through all known map files. If you have a variable in the Map Shape zone, the X and Y zones disappear. The Map Shape zone is positional and influences the types of graph elements that are available.

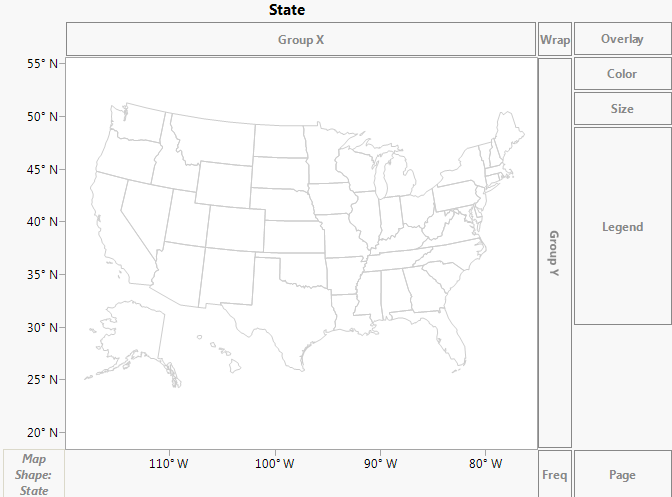

Figure 12.4 Example of Cities.jmp After Dragging State to Map Shape

Example of Cities.jmp After Dragging State to Map Shape

For each map there are two .jmp files; one for the name data (one row per entity) and one for coordinate data (many rows per entity). They are paired via a naming convention; xxx-Name.jmp and xxx-XY.jmp, where "xxx" is some common prefix.

Some examples of sample files that are shipped with JMP are:

World-Name.jmp

World-XY.jmp

US-State-Name.jmp

US-State-XY.jmp

Map Name Files

Each xxx-Name.jmp can contain any number of shape name columns, which are identified with a column property. Multiple name columns support localizations and alternate names styles (such as abbreviations), but a given graph usage uses only one column of names. The first column of the Name file contains unique Shape ID numbers in ascending order. JMP creates this columns for you. The column values match those in the -XY.jmp map data table Shape ID column.

Note: The Shape ID column can also be named Shape.

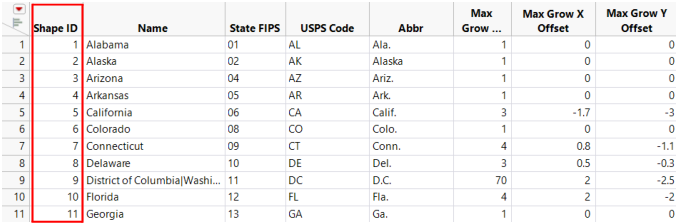

Figure 12.5 Example of US-State-Name.jmp

Example of US-State-Name.jmp

Map XY Files

Each xxx-XY.jmp file has four columns. Each row is a coordinate in some shape. Each shape is made of one or more parts. Each part is a closed polygon. The first column is the same Shape ID as in the xxx-Name file. The second column is the Part ID. The next two columns are X and Y.

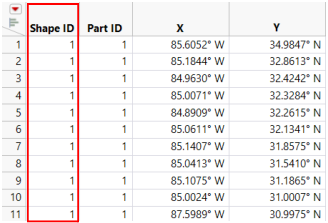

Figure 12.6 Example of US-State-XY.jmp

Example of US-State-XY.jmp
