Screening Design Window

The Screening Design window updates as you work through the design steps. See The DOE Workflow: Describe, Specify, Design. The outlines that appear are separated by buttons that update the window. These follow the flow in the figures below.

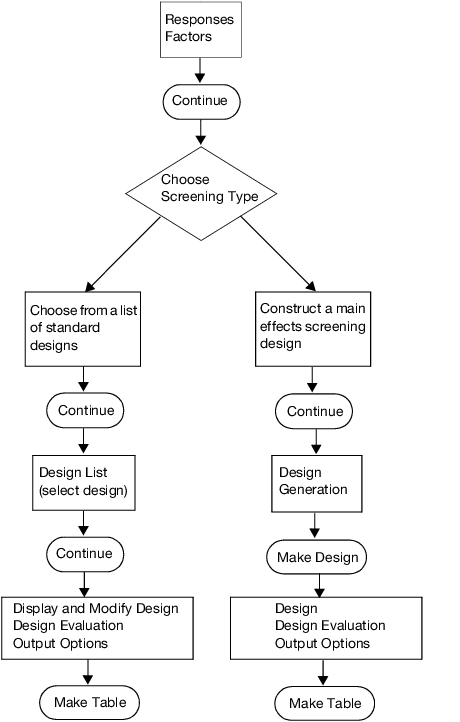

Figure 9.11 Screening Design Flow when a Standard Design Exists

Screening Design Flow when a Standard Design Exists

Figure 9.12 Screening Design Flow when No Standard Design Exists

Screening Design Flow when No Standard Design Exists
