Image shown hereThe Repairable Systems Simulation Window

Launch the Repairable Systems Simulation platform by selecting Analyze > Reliability and Survival > Repairable Systems Simulation. The Repairable Systems Simulation window is divided into the following panels:

• System Diagram

• Shapes Toolbar

• Configuration Panel

• Add Event Panel

• Add Action Panel

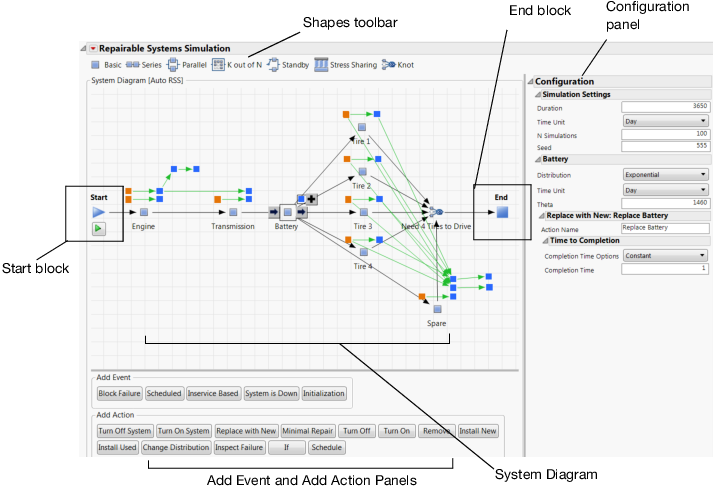

Figure 12.5 The Repairable Systems Simulation Window

The Repairable Systems Simulation Window
