Example of a CDF Plot

1. Select Help > Sample Data Library and open Analgesics.jmp.

2. Select Analyze > Fit Y by X.

3. Select pain and click Y, Response.

4. Select drug and click X, Factor.

5. Click OK.

6. Click the red triangle next to Oneway Analysis of pain By drug and select CDF Plot.

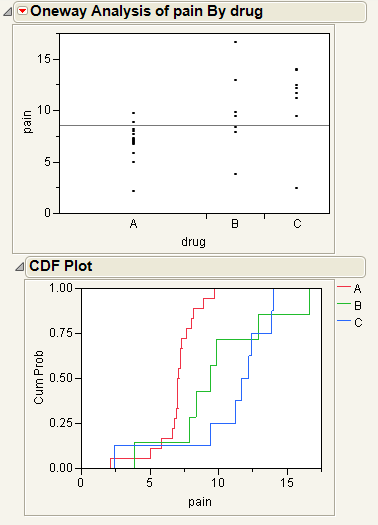

Figure 6.35 Example of a CDF PlotĀ

Example of a CDF Plot

The levels of the X variables in the initial Oneway analysis appear in the CDF plot as different curves. The horizontal axis of the CDF plot uses the y value in the initial Oneway analysis.
