Right-Click Menu Options

You can right-click in the plot area of the Surface Plot to reveal the following menu options:

Sheet Properties

(Option appears only if you right-click the sheet.) Displays the Sheet Properties window. Available only if Sheet, points is selected in the Appearance Controls. See Sheet or Surface Properties.

Surface Properties

(Options appears only if you click the surface.) Displays the Surface Properties window. Available only if Isosurface is selected in the Appearance Controls. See Sheet or Surface Properties.

Show Legend

Shows or hides a legend.

Reset

Resets the plot to the original viewpoint. Changes in wall and background color are not affected.

Settings

Opens a window for changing many plot settings. For more information about the OpenGL Scene commands, see Three-Dimensional Scenes in the Scripting Guide.

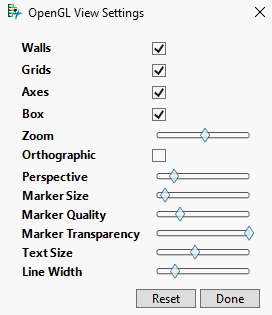

Figure 5.11 OpenGL View SettingsĀ

OpenGL View Settings

Hide Lights Border

Shows or hides lighting controls.

Wall Color

Enables you to change the plot wall color.

Background Color

Enables you to change the plot background color.

Rows

Enables you to change row colors or markers, and also exclude, hide, and label points.

Use Hardware Acceleration

Provides for faster rendering of the display. For example, if the plot redraws slowly when rotating, this option can help it redraw faster.

Show ArcBall

Provides options for using the ArcBall. The ArcBall is a sphere drawn around the plot to help visualize the directions of rotation.
