Example of Creating a Workflow from the Log History

A workflow can be started at any point during a JMP session. In this example, add steps from the log history to a workflow. Start with a new JMP session.

1. Select Help > Sample Data Folder and open Iris.jmp.

2. Select Graph > Graph Builder.

3. Select Sepal length and drag to the X zone.

4. Select Sepal width and drag to the Y zone.

5. Click Done.

6. Close Graph Builder.

7. Select File > New > Workflow.

In the JMP Log History, all the steps you have performed since you opened your JMP session are captured.

8. Select the Graph Builder steps that you want to add to your workflow.

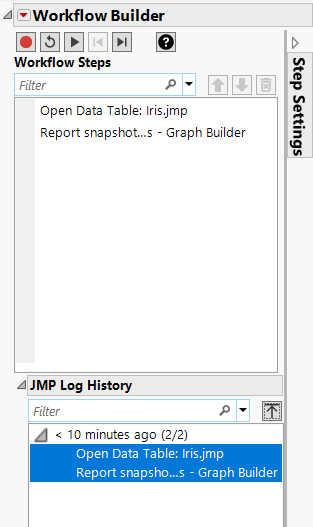

Figure 12.6 Selecting Steps in Workflow Builder

Selecting Steps in Workflow Builder

9. Click Image shown here to move the steps up.

10. Click Image shown here to test the workflow.
