Example of Merging Referenced Data in Virtually Joined Data Tables

To share the data from virtually joined JMP data tables with another user, you might want to merge the data so that the data tables are permanently joined. This option is helpful because you provide one data table, not the main and auxiliary data tables.

When you merge referenced data, the data are replicated from the auxiliary data table to the main data table. When you save the main data table, the actual data are also saved.

1. Select Help > Sample Data Folder and open Pizza Profiles.jmp and Pizza Responses.jmp.

2. Right-click the ID column in Pizza Profiles.jmp and select Link ID.

3. Select the Choice1, Choice2, and Choice columns in Pizza Responses.jmp, right-click, and then select Link Reference > Pizza Profiles.jmp.

The selected columns are linked to the ID column in Pizza Profiles.jmp.

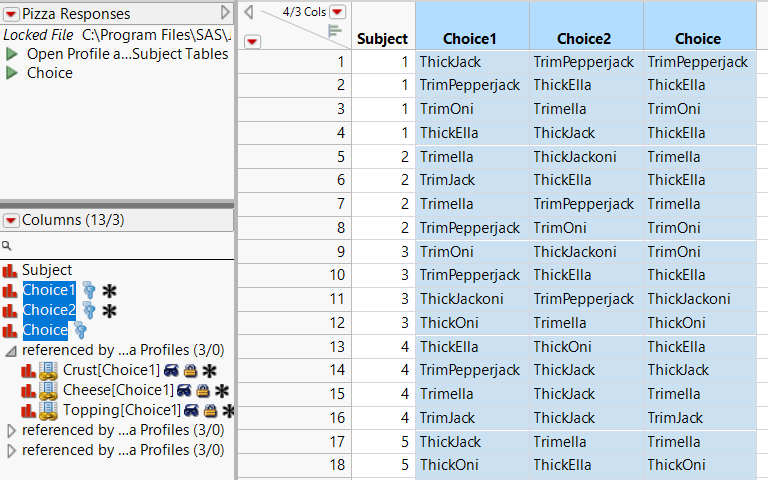

Figure 6.37 Selected Columns in Virtually Joined Data Table

Selected Columns in Virtually Joined Data Table

4. In Pizza Responses.jmp, select the Choice1 column if it is not already selected.

Note: If you do not select the columns, then all columns will be in the merged data.

5. Click the red triangle next to the name of the data table and select Merge Referenced Data.

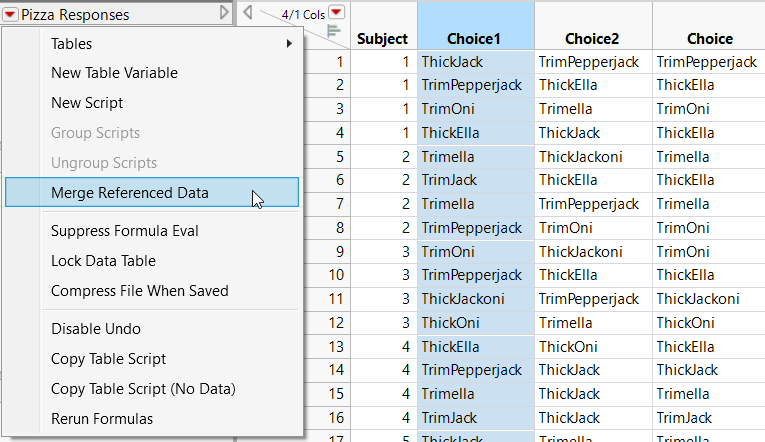

Figure 6.38 Merging Referenced Data

Merging Referenced Data

A message confirms that the selected column was merged. Notice that the blue virtual join icon for Choice1 no longer appears in the Column list. The Link Reference column property was removed.

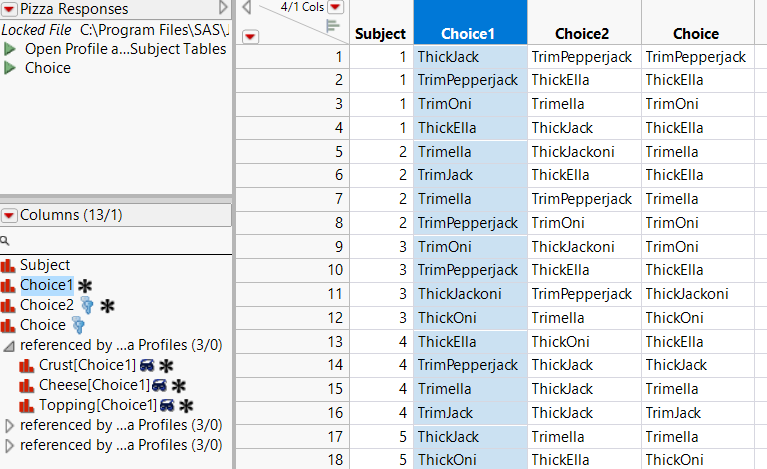

Figure 6.39 Merged Data

Merged Data

If you hover over one of the linked columns in the Columns panel, a tooltip indicates which data table it is linked to.

Figure 6.40 Data Table that Contains the Linked Column

Data Table that Contains the Linked Column
