Factors

Add mixture factors in the Factors section.

Tip: When you have completed the Factors section, consider selecting Save Factors from the red triangle menu. This saves the factor names, roles, changes, and values in a data table that you can later reload.

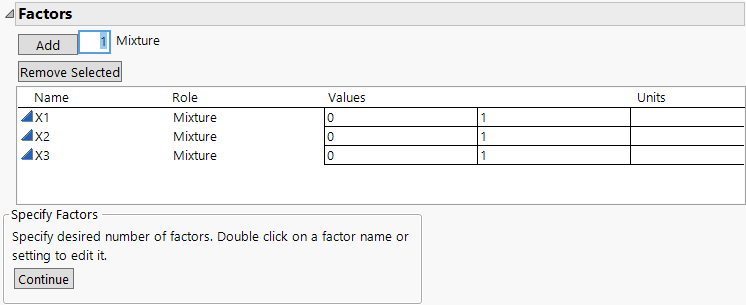

Figure 14.3 Factors

Factors

Add

Enter the number of factors to add and click Add.

Remove Selected

Removes the selected factors.

Factors List

The Factors list contains the following columns:

Name

The name of the factor. When added, a factor is given a default name of X1, X2, and so on. To change this name, double-click it and enter the desired name.

Role

Specifies the Design Role of the factor. The Design Role column property for the factor is saved to the data table. This property ensures that the factor type is modeled appropriately.

Values

The experimental settings for the factors. To insert Values, click the default values and enter the desired values.

Editing the Factors List

In the Factors list, do the following:

To edit a factor name, double-click the factor name.

To edit a value, click the value in the Values column.

Linear Constraints

Click the Linear Constraint button to enter one or more linear inequality constraints. A template appears for a linear expression involving all the continuous factors in your design. Enter coefficient values for the factors and select the direction of the inequality to reflect your linear constraint. Specify the constraining value in the box to the right of the inequality. To add more constraints, click Linear Constraint again.

Note: When you save a script for a design that involves a linear constraint, the script expresses the linear constraint as a less than or equal to inequality ().
