Essential Graphing > Cell Plots > Launch the Cell Plot Platform
Publication date: 04/21/2023

Launch the Cell Plot Platform

Launch the Cell Plot platform by selecting Graph > Cell Plot.

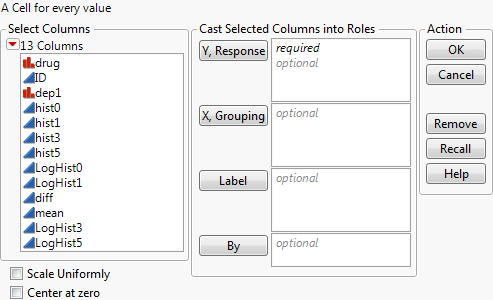

Figure 8.3 The Cell Plot Launch Window

The Cell Plot Launch Window

Y, Response

Variables appear on the horizontal axis of the cell plot. Each cell represents a value.

X, Grouping

Produces a separate cell plot for each level of the variable.

Label

Labels each row by the specified variable. See Additional Example of the Cell Plot Platform.

By

Identifies a column that creates a report consisting of separate analyses for each level of the variable.

Scale Uniformly

Represents all variables on the same scale. Without this option, each variable is on a different scale.

Center at zero

Centers the cell plot at zero.

After you click OK, the Cell Plot window appears.
