Launch the Multivariate Control Chart Platform

Launch the Multivariate Control Chart platform by selecting Analyze > Quality And Process > Control Chart > Multivariate Control Chart.

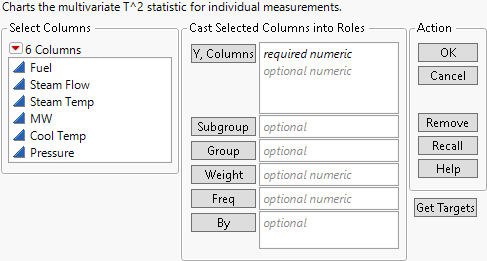

Figure 12.1 The Multivariate Control Chart Launch Window

The Multivariate Control Chart Launch Window

For more information about the options in the Select Columns red triangle menu, see Column Filter Menu in Using JMP.

Tip: Consider using the newer Model Driven Multivariate Control Chart platform. To launch the Model Driven Multivariate Control Chart platform, select Analyze > Quality and Process > Model Driven Multivariate Control Chart.

The Multivariate Control Chart platform launch window contains the following options:

Y, Columns

Specify the columns to be analyzed.

Subgroup

Enter a column with sub-grouped data. Hierarchically, this group is nested within Group.

Group

Enter a column that specifies group membership at the highest hierarchical level.

Weight

Identifies the data table column whose variables assign weight (such as importance or influence) to the data.

Freq

Identifies the data table column whose values assign a frequency to each row. Can be useful when your data table contains summarized data.

By

Identifies a column that creates a report consisting of separate analyses for each level of the variable.

Get Targets

Click to select a JMP table that contains historical targets for the process.
