Type 1 Gauge Analysis

Evaluate a Continuous Measurement Process Using the Type 1 Method

A Type 1 Gauge analysis is a measurement systems analysis that determines whether a measurement system, or gauge, is repeatable. Specifically, the analysis determines if a measurement system can repeatedly measure a part and obtain measurements that are close to a known reference standard.

The Type 1 Gauge platform produces a run chart, histogram, and metrics such as Cg and CgK that are useful in assessing gauge repeatability.

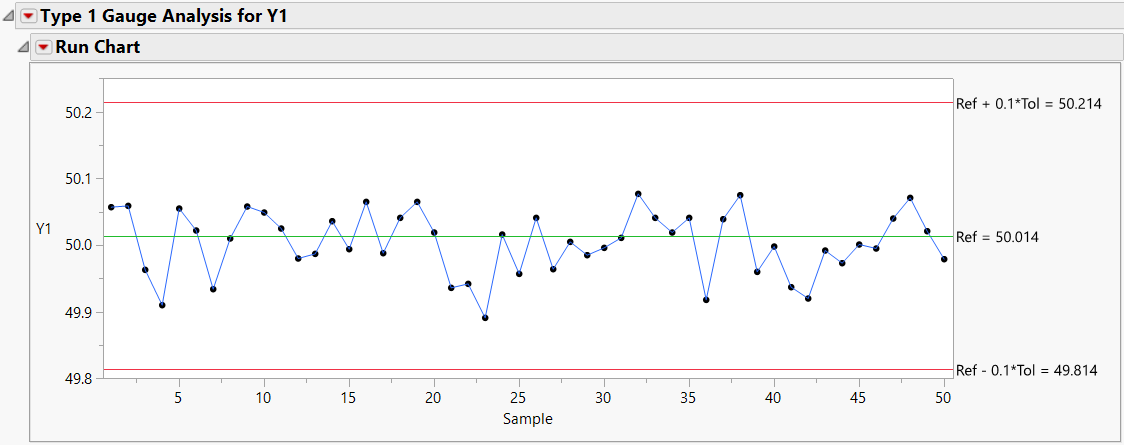

Figure 5.1 Example of a Type 1 Gauge Analysis

Example of a Type 1 Gauge Analysis

Contents

Example of Type 1 Gauge Analysis

Launch the Type 1 Gauge Platform

Data Format

The Type 1 Gauge Study Report

Run Chart
Summary and Capability Statistics Table

Type 1 Gauge Study Options

Type 1 Gauge Analysis Report Options
