Output Options

In the Definitive Screening Design platform, use the Output Options panel to perform the following tasks:

specify the order for the runs in the design data table

construct the design table

return to a previous point in the Definitive Screening Design window

Figure 8.8 Output Options Panel

Output Options Panel

The Output Options panel contains these options:

Run Order

The Run Order options determine the order of the runs in the design table. Choices include the following:

Keep the Same

Rows in the design table are in the same order as in the Design outline.

Sort Left to Right

Columns in the design table are sorted from left to right.

Randomize

Rows in the design table are in random order.

Sort Right to Left

Columns in the design table are sorted from right to left.

Randomize within Blocks

Rows in the design table are in random order within the blocks.

Make Table

Click Make Table to construct the Definitive Screening Design data table.

In the Definitive Screening Design table, the Table panel (in the upper left) contains the following scripts. To run a script, click the green triangle next to the script name.

Fit Definitive Screening

Runs the DOE > Definitive Screening > Fit Definitive Screening platform. See The Fit Definitive Screening Platform.

Evaluate Design

Runs the DOE > Design Diagnostics > Evaluate Design platform. See Evaluate Designs.

DOE Dialog

Re-creates the Definitive Screening Design window that you used to generate the design table.

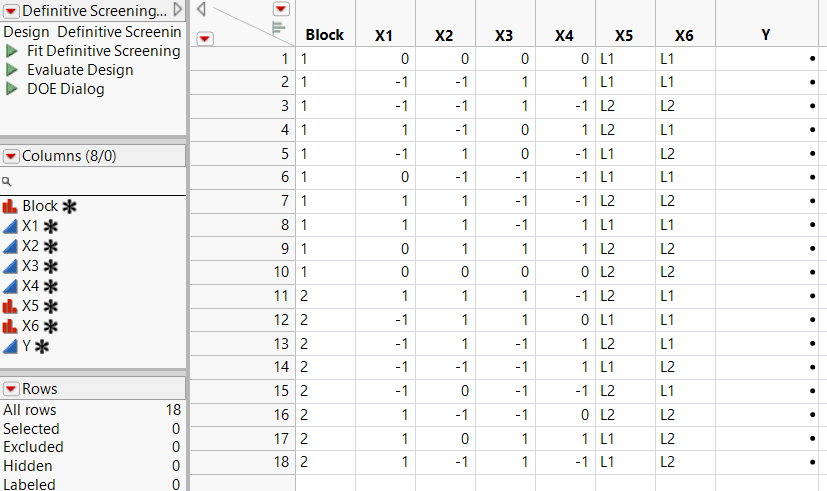

Figure 8.9 Definitive Screening Design Table Showing Scripts

Definitive Screening Design Table Showing Scripts

Back

The Back button takes you back to where you were before clicking Make Design. You can make changes to the previous sections and regenerate the design.
