Preferences for JMP Data Filters

Data Filter preferences customize settings for data filters.

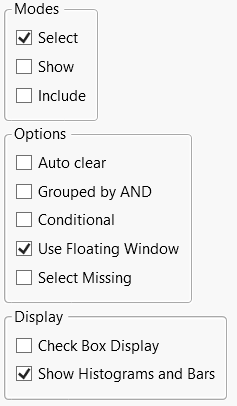

Figure 14.9 Data Filter Preferences

Data Filter Preferences

Table 14.8 Preferences on the Data Filter Page

Preference

Description

Modes

Specifies the filtering mode.

Select

Shows the selected rows in the data table in a highlighted state. This option is selected by default.

Show

Shows the unselected rows with the Hide icon. This option is deselected by default.

Include

Shows the unselected rows with the Exclude icon. This option is deselected by default.

Options

Specifies options for the data filter.

Auto clear

If you have more than one nominal or ordinal column selected in the Data Filter, this option clears any other selections before making a new selection. This option is deselected by default.

Grouped by AND

Enables you to control the AND and OR behavior of multiple groups of column filters. This option is deselected by default.

Conditional

Limits the categories displayed for the selected filter column. This option is deselected by default.

Use Floating Window

Keeps the Data Filter window on top of its associated data table. This option is selected by default.

Select Missing

Highlights missing values in the data table. This option is deselected by default.

Display

Specifies display options for categorical columns.

Check Box Display

Shows a check box next to each level. This option is deselected by default.

Show Histograms and Bars

Shows the histogram and bars in the data filter. This option is selected by default.
