To launch Graph Builder, open your data table and then select Graph > Graph Builder. The Variables list contains the columns in your data table, which you can drag into zones.

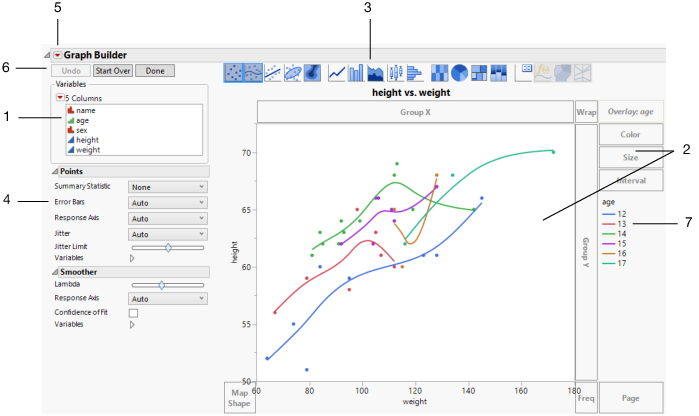

Figure 3.2 Graph Builder Window for Big Class.jmp
1.
Select Help > Sample Data Library and open Big Class.jmp.
2.
Select Graph > Graph Builder.
3.
Select height and drag it to the Y zone.
4.
Select weight and drag it to the X zone.
5.
Select age and drag it to the Overlay zone.
The graph in Figure 3.2 appears. The relationship between height and weight for each value of age is shown using color in a single graph.
6.
Select age in the Overlay zone and drag it to the Wrap zone.

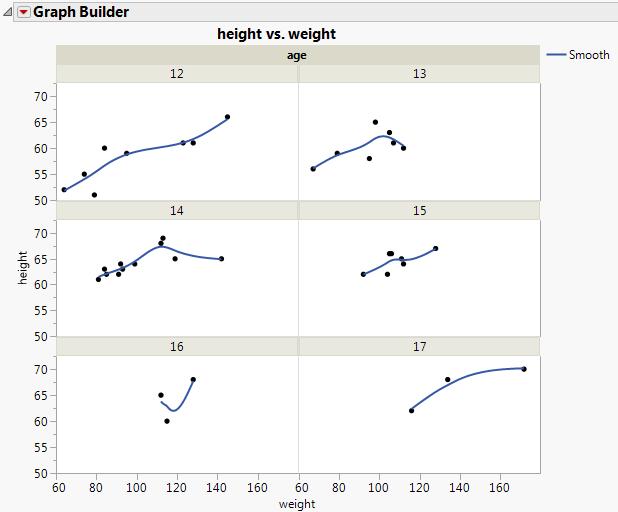

Figure 3.3 Height and Weight Grouped by Age
For each value of age, the relationship between height and weight is shown in a separate graph.
