Plackett-Burman Design

The Fractional Factorial example shows an 8-run fractional factorial design for five continuous factors. But suppose you can afford 4 additional runs. In this example, construct a 12-run Plackett-Burman design. To facilitate completing the Screening window, use the Load Responses and Load Factors commands.

Create the Plackett-Burman Design

1. Select DOE > Classical > Two Level Screening > Screening Design.

2. Select Help > Sample Data Library and open Design Experiment/Reactor

3. Click the Screening Design red triangle and select Load Responses.

4. Select Help > Sample Data Library and open Design Experiment/Reactor

5. Click the Screening Design red triangle and select Load Factors.

The Load Responses and Load Factors commands fill in the Responses and Factors outlines with the response and factor names, goal and limits for the response, and values for the factors. See Figure 9.19 for the completed Responses and Factors outlines.

6. Click Continue.

Note: Setting the random seed in the next step reproduces the run order shown in this example. In constructing a design on your own, this step is not necessary.

7. (Optional) Click the Screening Design red triangle, select Set Random Seed, type 34567, and click OK.

8. From the Choose Screening Type panel, accept the default selection to Choose from a list of fractional factorial designs and click Continue.

9. Select the Plackett-Burman design.

Plackett-Burman designs with run sizes that are not a power of two tend to have complex aliasing structures. In particular, main effects can be partially aliased with several two-way interactions. See Evaluate the Design. Notice that the 12-run Plackett-Burman design is designated as having Resolution 3.

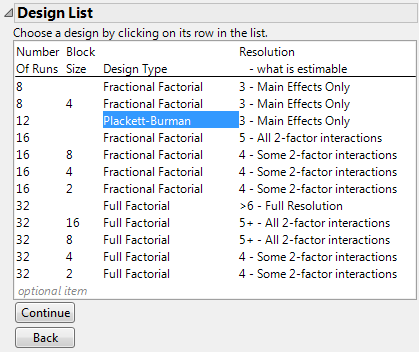

Figure 9.26 Design List Showing Plackett-Burman Screening Design

10. Click Continue.

11. Click Make Table.

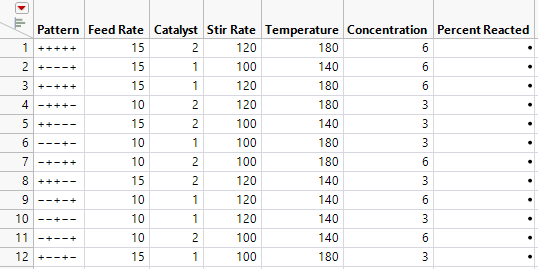

Figure 9.27 Design Table for Placket-Burman Design

A column called Percent Reacted is included in the design table. You should conduct your experimental runs in the order shown in the table, recording your results in the Percent Reacted column.

Evaluate the Design

1. Return to your Screening Design window. If you have closed this window, run the DOE Dialog script in your design table.

2. Open the Design Evaluation > Color Map on Correlations outline.

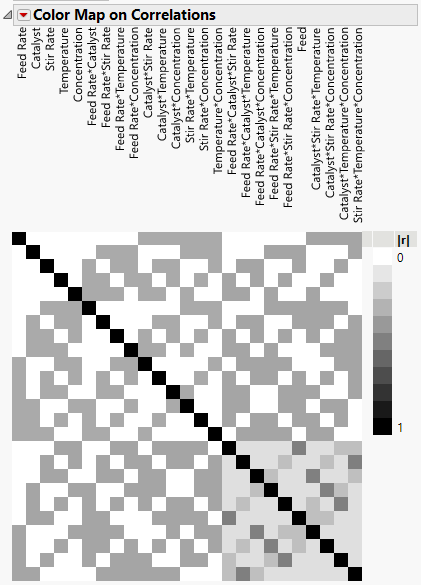

Figure 9.28 Color Map for Absolute Correlations

The diagonal cells have correlations of one, as expected. White cells correspond to effects that have correlations equal to 0. The gray and black cells correspond to effects that have correlations greater than zero. Place your cursor over a few of these cells with your cursor to see the effects involved and their absolute correlations. For example, notice that Feed Rate is correlated with several two-way and three-way interactions.

3. Open the Alias Matrix outline.

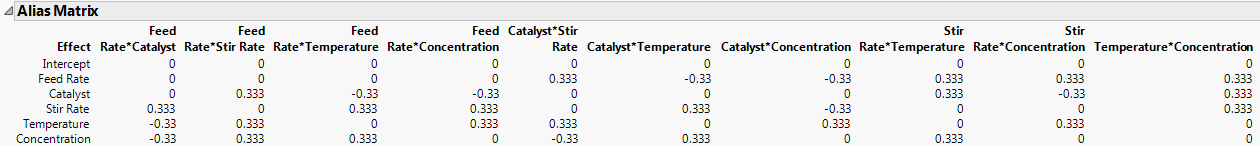

Figure 9.29 Alias Matrix - Partial View Showing Up to Two-Way Interactions

Because the design is orthogonal for the main effects, the Alias Matrix gives the numerical values of the correlations between effects. See Alias Matrix in the Evaluate Designs section. For example, notice that Feed Rate is partially aliased with six two-way interactions and with four three-way interactions. These are the interactions corresponding to the entries of 0.333 and -0.33 in the row for Feed Rate.

Analyze the Results

The data table contains the results of the designed experiment. Recall that you suspect that the Temperature*Concentration interaction is active. You proceed under the assumption that this is the only potentially active interaction.

1. Select Help > Sample Data Library and open Design Experiment/

2. Run the Model script by clicking the icon to its left.

3. Select Temperature in the Select Columns list and Concentration in the Construct Model Effects list.

4. Click Cross.

5. Click Run.

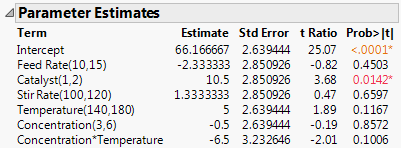

Figure 9.30 Parameter Estimates for Full Model

The Actual by Predicted Plot indicates no lack of model fit. The Parameter Estimates report shows that Catalyst is significant at the 0.05 level and that the Concentration*Temperature interaction is almost significant at the 0.10 level.

Reduce the Model

You want to identify those effects that have the most impact on the response. To see these active effects more clearly, remove insignificant effects using the Effect Summary outline.

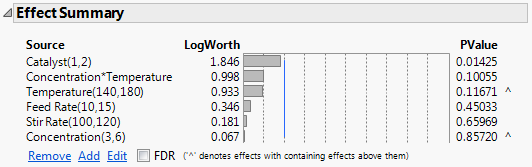

Figure 9.31 Effect Summary Outline for Full Model

Although Concentration is the least significant effect, it is involved in a higher-order interaction (Concentration*Temperature), as indicated by the caret to the right of its PValue. Based on the principle of effect heredity, Concentration should not be removed from the model while the Concentration*Temperature interaction remains in the model. See Effect Heredity in the Starting Out with DOE section. The next least significant effect is Stir Rate.

1. In the Effect Summary outline, select Stir Rate and click Remove.

Feed Rate is the next least significant effect that can be removed.

2. In the Effect Summary outline, select Feed Rate and click Remove.

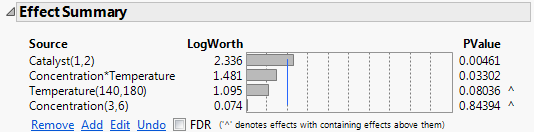

Figure 9.32 Effect Summary Outline for Reduced Model

The PValue column indicates that the Catalyst main effect and the Concentration*Temperature interaction are both significant at the 0.05 level. The model should not be reduced any further. If all other interactions are inactive or negligible, then you can conclude that Catalyst and the Concentration*Temperature interaction are active effects.
