Image shown hereModel Specification Report

The Model Specification report contains controls for specifying your model. When you click OK in the launch window, the default model of independence appears in the Diagram and Lists tabs of the Model Specification report. The independence model includes all means and variances of the specified Model Variables.

Image shown hereSpecification Panel

The Specification panel contains controls for building your model.

Model Name

Enables you to specify a name for the model. When you click Run in the Action panel, a model report that uses the text in Model Name is created.

From List

Lists the model variables that were specified in the launch window as well as a Constant term. The Constant term estimates means of any observed or latent variable by regressing each variable on the Constant. Select one or more variables in this list and one or more variables in the To List before clicking one of the arrow buttons to add terms to the model. If you create a latent variable, the latent variable is added to the From List and the To List. You can filter the items in this list using the search filter controls at the top of the list. See Search Filter Options.

To List

Lists the model variables that were specified in the launch window as well as a Constant term. The Constant term estimates means of any observed or latent variable by regressing each variable on the Constant. Select one or more variables in the From List and one or more variables in this list before clicking one of the arrow buttons to add terms to the model. If you create a latent variable, the latent variable is added to the From List and the To List. Variables in the To List must be selected to add latent variables to the model. You can filter the items in this list using the search filter controls at the top of the list. See Search Filter Options.

Unidirectional Arrow Image shown here

Specifies the type of relationship between the selected variables in the From List and the To List. The unidirectional arrow is equivalent to a regression effect.

Bidirectional Arrow Image shown here

Specifies the type of relationship between the selected variables in the From List and the To List. The bidirectional arrow is equivalent to a covariance effect.

Add Latent Image shown here

Adds a latent variable to the From and To lists. The variable is named based on the text in the box to the left of the Image shown here button.

Note: You must select indicators for the latent variable in the To List prior to clicking the Image shown here button.

Remove Latent Image shown here

Removes any latent variables that are currently selected in either the From List or the To List. Removing a latent variable from the From and To lists also removes the latent variable from the model.

Model Shortcuts

Contains three categories of options to quickly build common models. Note that when you select one of these options, all current model specifications are cleared.

Specification Assist

Contains options that shortcut the process of adding covariances for either exogenous or endogenous variables.

Cross-Sectional Classics

Contains options for confirmatory factor analysis and mediation analysis.

Longitudinal Analysis

Contains options for common latent growth curve models: intercept-only, linear, quadratic, and latent basis growth curve. Additionally, the Fit and Compare Growth Models option enables you to fit no growth, linear growth, and quadratic growth models in one click.

Note: If variables in the To List are selected when you select one of the latent growth curve options, the model is applied only to the selected variables. Otherwise, the model is applied to all of the variables in the To List.

Image shown hereAction Panel

The buttons in the Action panel operate on the lists of specified model variables in the Lists tab. The following operations are available:

Fix To

Enables you to fix the parameter value of the currently selected effect to a constant value. When you fix the parameter value for a variable, the fixed value appears in parentheses after the name of the term.

Note: If you keep the default value of 0 when you click OK, the selected effects are removed from the model.

Set Equal

Enables you to constrain the parameter values of two or more selected effects to be equal. When you set two or more effects to have equal parameter values, an arbitrary alphanumeric label (“c1”) appears in parentheses after the names of the terms. In the case of multiple sets of effects that have parameter values that are set equal to each other, sequential numbering is used (“c1”, “c2”, and so on).

Note: Equality constraints are allowed only within the same type of parameters.

Free

Enables you to remove restrictions on the selected effects in the model. Restrictions include effects that have been set to a fixed value or effects that have been set equal to other effects.

Remove

Removes the selected effects from the model.

Undo

Undoes the last modification to the model.

Redo

Redoes the last undone modification to the model.

Run

Fits and creates a report for the currently specified model.

Reset

Resets the model specification to the independence model, which is the default.

Image shown hereDiagram Panel

The Diagram panel contains buttons that enable you to adjust the layout of the model diagram. The first button enables you to rotate the manifest variables (represented by rectangles) in the diagram. The second button enables you to cycle through two different arrangements of the diagram. The third button enables you to customize the diagram. See Customize the SEM Path Diagram.

Image shown hereDetails Panel

The Details panel contains information about the model that is currently specified in the Model Specification report. Information about the model includes the number of manifest variables, number of latent variables, number of freely estimated parameters, and number of degrees of freedom. You can also adjust the maximum number of iterations.

Image shown hereDiagram Tab

The Diagram tab contains a model diagram that enables you to visualize the currently specified model. Latent variables are represented by circles, and manifest variables are represented by rectangles. Unidirectional arrows represent loadings and regressions. Bidirectional arrows represent variances and covariances. A variance is specified by a bidirectional arrow from one variable to itself. A covariance is specified by a bidirectional arrow between two variables.

The path diagram is interactive, so you can drag items to arrange them. You can also use the arrow keys to move selected items in the path diagram. You can use the buttons in the Diagram panel to rearrange items in the path diagram. You can use the options in the path diagram pop-up menu to add or remove items in the path diagram. The path diagram pop-up menu appears when you right-click in the path diagram itself. The contents of the pop-up menu differs based on whether you click on part of the blank canvas or on an element of the path diagram. You can also zoom in or out in the path diagram by adjusting the zoom setting in the upper left corner of the path diagram. The path diagram also contains a Lock button in the top left corner that enables you to lock the positions of the items in the path diagram. When the path diagram is locked, the Lock button is blue. After making a selection in the path diagram, you can hide the selection by selecting the Selection > Hide Selection option in the pop-up menu. When items in the path diagram are hidden, an Unhide All button appears at the top of the path diagram that enables you to show all hidden items.

See Customize the SEM Path Diagram for more information about path diagram customization options. See Diagram Panel, Details Panel, and Path Diagram Settings.

Tip: To copy the path diagram as an image, right-click the diagram and select Copy Diagram. To retain the highest possible quality, paste the clipboard image as a vector graphic.

Image shown hereLists Tab

The Lists tab contains lists for each type of variable in the model. They are categorized by the arrows that are used to represent them in the model diagram. Unidirectional arrows are used to designate means or intercepts, loadings, and regressions. Bidirectional arrows are used to designate variances and covariances. Means and intercepts for the model appear only in the Lists tab and not in the Diagram tab.

You can filter the items in each list using the search filter controls at the top of each list. See Search Filter Options.

Image shown hereStatus Tab

The Status tab contains checks for model identifiability. Structural equation models must be identified to obtain reliable estimates. Identification in the context of SEM means that one can derive unique solutions for every parameter in the model based on the population covariance matrix of the input data. Because you can specify such a variety of models in the SEM framework, there are a variety of rules for identifiability. The Status tab consists of three panels of information: Identification Rules, Model Details, and Data Details.

The Identification Rules panel contains a list of up to eight rules that are appropriate for a specified model. Some rules are necessary and others are sufficient to guarantee model identification. If necessary rules fail, steps must be taken to correct them before fitting the model. If sufficient rules fail, you do not necessarily need to address any issues. Sometimes sufficient rules can fail without being evidence of anything wrong with the model. Note that all of the rules assume a positive definite covariance matrix. If the covariance matrix is not positive definite, a warning appears below the Model Details panel.

Tip: For more information about a particular identification rule, click on the row of the table for the rule and a description of the rule appears to the right of the table.

The Model Details panel contains a list of descriptive values for the currently specified model. These values can be used to detect potential issues with the model.

The Data Details panel contains a list of descriptive values for the input data. These values can be used to detect potential issues with the data.

If there are singularities in the specified data columns, the report contains a Singularity Details table.

The Status tab itself contains a dynamic icon that shows the current status of the specified model. The icon designates the status:

Image shown here

All applicable identification rules pass.

Image shown here

At least one necessary identification rule does not pass and you must take steps to correct the issues before fitting the model.

Image shown here

At least one non-necessary identification rule does not pass and further investigation is needed to determine whether the model is correctly specified. Oftentimes, advanced applications of SEM lead to this situation; this does not suggest a problem with the model. Rather, it suggests that the identification rules cannot guarantee that the model is identified.

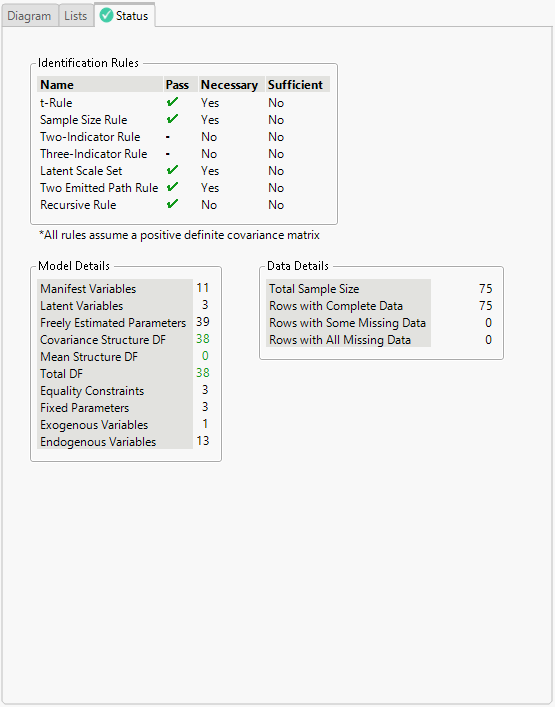

Figure 8.6 Example Status Tab

Example Status Tab

Image shown hereSearch Filter Options

The From List, To List, and the list boxes that appear in the Lists tab in the Model Specification report contain search filters that enable you to filter the items in a specific list.

Click the down arrow button next to the search box to refine your search.

Contains Terms

Returns items that contain a part of the search criteria. A search for “ease oom” returns messages such as “Release Zoom”.

Contains Phrase

Returns items that contain the exact search criteria. A search for “text box” returns entries that contain “text” followed directly by “box” (for example, “Context Box” and “Text Box”).

Starts With Phrase

Returns items that start with the search criteria.

Ends With Phrase

Returns items that end with the search criteria.

Whole Phrase

Returns items that consist of the entire string. A search for “text box” returns entries that contain only “text box”.

Regular Expression

Enables you to use the wildcard (*) and period (.) in the search box. Searching for “get.*name” looks for items that contain “get” followed by one or more words. It returns “Get Color Theme Names”, “Get Name Info”, and “Get Effect Names”, and so on.

Invert Result

Returns items that do not match the search criteria.

Match All Terms

Returns items that contain both strings. A search for “t test” returns elements that contain either or both of the search strings: “Pat Test”, “Shortest Edit Script” and “Paired t test”.

Ignore Case

Ignores the case in the search criteria.

Match Whole Words

Returns items that contain each word in the string based on the Match All Terms setting. If you search for “data filter”, and Match All Terms is selected, entries that contain both “data” and “filter” are returned.
