Mixture Profiler

Explore Factor Effects Using Ternary Plots

The Mixture Profiler displays response contours on a ternary plot for mixture models, where three or more factors in the model are components (ingredients) in a mixture. The Mixture Profiler is useful for visualizing and optimizing response surfaces resulting from mixture experiments.

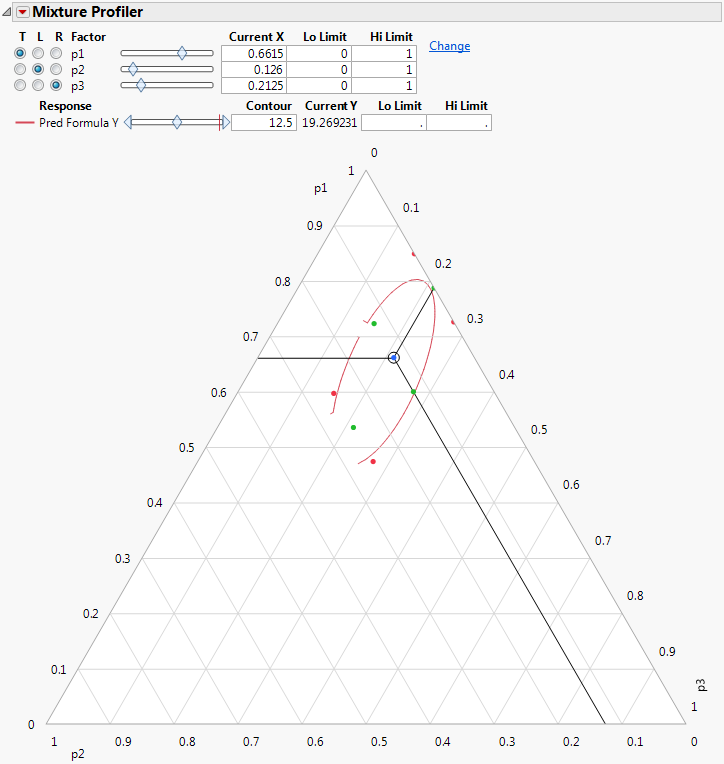

Figure 6.1 Mixture Profiler Example

Mixture Profiler Example

Contents

Overview of the Mixture Profiler

Ternary Plot Overview
Ternary Plots with More Than Three Components

Example of the Mixture Profiler

Launch the Mixture Profiler Platform

The Mixture Profiler Report

Factor Settings and Controls
Response Settings and Controls

Mixture Profiler Platform Options

Customizations for the Mixture Profiler

Linear Constraints

Additional Examples of the Mixture Profiler Platform

Mixture Variables with a Process Variable
Multiple Responses with Five Mixture Variables
