Discrete Fit Distributions

This section contains statistical details for the options in the Discrete Fit menu.

Fit Poisson

The Poisson distribution has a single scale parameter λ > 0.

pmf: Equation shown here for 0 λ < ; x = 0,1,2,...

E(x) = λ

Var(x) = λ

Since the Poisson distribution is a discrete distribution, the overlaid curve is a step function, with jumps that occur at every integer.

Fit Negative Binomial

The negative binomial distribution is useful for modeling the number of successes before a specified number of failures. The following parameterization contains mean parameter λ and dispersion parameter σ.

pmf: Equation shown here

E(x) = λ

Var(x) = λ + σλ2

where Γ(·) is the Gamma function.

Relationship between Negative Binomial and Gamma Poisson Distributions

The negative binomial distribution is equivalent to the Gamma Poisson distribution. The Gamma Poisson distribution is useful when the data are a combination of several Poisson(μ) distributions and each Poisson(μ) distribution has a different μ.

The Gamma Poisson distribution results from assuming that x|μ follows a Poisson distribution and μ follows a Gamma(α,τ). The Gamma Poisson has parameters λ = ατ and σ = τ+1. The parameter σ is a dispersion parameter. If σ > 1, there is over dispersion, meaning there is more variation in x than explained by the Poisson alone. If σ = 1, x reduces to Poisson(λ).

pmf: Equation shown here for 0 < λ; 1 ≤ σ; x = 0,1,2,...

E(x) = λ

Var(x) = λσ

where Γ(·) is the Gamma function.

The Gamma Poisson is equivalent to a Negative Binomial with σnegbin = (σgp - 1) / λgp.

Run demoGammaPoisson.jsl in the JMP Samples/Scripts folder to compare a Gamma Poisson distribution with parameters λ and σ to a Poisson distribution with parameter λ.

Fit ZI Poisson

The zero-inflated (ZI) Poisson distribution has scale parameter λ > 0 and zero-inflation parameter π.

pmf: Equation shown here

E(x) = (1 - π)λ

Var(x) = λ(1 - π)(1 + λπ)

Fit ZI Negative Binomial

The zero-inflated (ZI) negative binomial distribution has scale parameter λ > 0, dispersion parameter σ > 0, and zero-inflation parameter π.

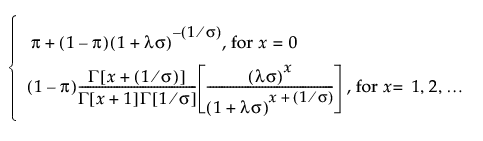

pmf: Equation shown here

E(x) = (1 - π)λ

Var(x) = λ(1 - π)[1 + λ(σ + π)]

Fit Binomial

The Fit Binomial option accepts data in two formats: a constant sample size, or a column containing sample sizes.

pmf: Equation shown here for 0 p 1; x = 0,1,2,...,n

E(x) = np

Var(x) = np(1-p)

where n is the number of independent trials.

Note: The confidence interval for the binomial parameter is a Score interval. See Agresti and Coull (1998).

Fit Beta Binomial

The beta binomial distribution is useful when the data are a combination of several Binomial(p) distributions and each Binomial(p) distribution has a different p. One example is the overall number of defects combined from multiple manufacturing lines, when the mean number of defects (p) varies between the lines.

The beta binomial distribution results from assuming that x|π follows a Binomial(n,π) distribution and π follows a Beta(α,β). The beta binomial has parameters p = α/(α+β) and δ = 1/(α+β+1). The parameter δ is a dispersion parameter. When δ > 0, there is over dispersion, meaning there is more variation in x than explained by the Binomial alone. When δ < 0, there is under dispersion. When δ = 0, x is distributed as Binomial(n,p). The beta binomial exists only when n 2.

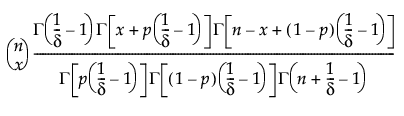

pmf: Equation shown here

for Equation shown here; Equation shown here; x = 0,1,2,...,n

E(x) = np

Var(x) = np(1-p)[1+(n-1)δ]

where Γ(·) is the Gamma function.

Remember that x|π ~ Binomial(n,π), while π ~ Beta(α,β). The parameters p = α/(α+β) and δ = 1/(α+β+1) are estimated by the platform. To obtain estimates of α and β, use the following formulas:

Equation shown here

Equation shown here

If the estimate of δ is 0, the formulas do not work. In that case, the beta binomial has reduced to the Binomial(n,p), and Equation shown here is the estimate of p.

The confidence intervals for the beta binomial parameters are profile likelihood intervals.

Run demoBetaBinomial.jsl in the JMP Samples/Scripts folder to compare a beta binomial distribution with dispersion parameter δ to a Binomial distribution with parameters p and n = 20.
