Output Options

Use the Output Options panel to save your custom design X Matrix, simulate responses, or customize your design data table. You can perform the following tasks:

specify how you want the custom design data table to appear

construct the design table

return to a previous point in the Custom Design window

In most cases, the Output Options panel appears as shown in Figure 4.24.

Figure 4.24 Output Options Panel

Output Options Panel

The Output Options panel contains these options:

Data Table Options

Run Order

Make Table

Back

Data Table Options

The Data Table Options includes the Save X Matrix option (Save X Matrix), the Simulate Response option (Simulate Responses) as well as an Include Run Order Column option.

Include Run Order Column

Adds a column to the design data table that corresponds to the design order in the Design section.

Tip: Use the Include Run Order Column when you save your data with a sorted run order. This provides a column of the randomized run order from the design section.

Run Order

The Run Order options determine the order of the runs in the design table. Choices include the following:

Keep the Same

Rows in the design table are in the same order as in the Design outline.

Sort Left to Right

Columns in the design table are sorted from left to right.

Randomize

Rows in the design table are in random order.

Sort Right to Left

Columns in the design table are sorted from right to left.

Randomize within Blocks

Rows in the design table are in random order within the blocks.

Make Table

Click Make Table to construct the custom design data table. In the Custom Design table, the Table panel (in the upper left) can contain scripts, as appropriate given your design. The Model, Evaluate Design, and DOE Dialog scripts are always provided. To run a script, click the green triangle next to the script name. If your design includes covariates, the design table includes a covariate row index column unless all covariate rows are used in the design.

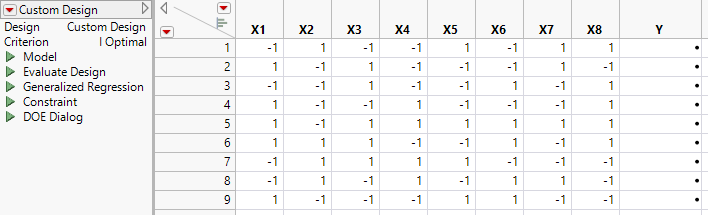

Figure 4.25 Custom Design Table Showing Scripts

Custom Design Table Showing Scripts

Possible scripts include the following:

Model

Runs the Analyze > Fit Model platform. The model described by the script is determined by your choices in the Model section and by the type of design.

Evaluate Design

Runs the DOE > Design Diagnostics > Evaluate Design platform. The model described by the script is determined by your choices in the Model section and by the type of design.

Constraint

Shows model constraints that you entered in the Define Factor Constraints section using the Specify Linear Constraints option.

Disallowed Combinations

Shows model constraints that you entered in the Define Factor Constraints section using the Use Disallowed Combinations Filter or the Use Disallowed Combinations Script options.

DOE Dialog

Re-creates the Custom Design window that you used to generate the design table. The script also contains the random seed used to generate your design.

Back

The Back button takes you back to where you were before clicking Make Design. You can make changes to the previous sections and regenerate the design.

Note: If you attempt to remove all factors after clicking the Back button, one continuous factor remains. You can delete the continuous factor after new factors are added.
