Statistical Examples of Matrices

This section contains statistical examples of using matrices in JSL.

Regression Example

Suppose that you want to implement your own regression calculation, rather than use the facilities built into JMP. Because of the compact matrix notation, it might require only a few lines of code:

Y = [98, 112.5, 84, 102.5, 102.5, 50.5, 90, 77, 112, 150, 128, 133, 85, 112];
X = [65.3, 69, 56.5, 62.8, 63.5, 51.3, 64.3, 56.3, 66.5, 72, 64.8, 67, 57.5, 66.5];
X = J( N Row( X ), 1 ) || X; // put in an intercept column of 1s
beta = Inv( X` * X ) * X` * Y; // the least square estimates
resid = Y - X * beta; // the residuals, Y - predicted
sse = resid` * resid; // sum of squared errors
Show( beta, sse );

This could be expanded into a script that gets its data from a data table, calculates additional results, and shows the results in a report window:

dt = Open( "$SAMPLE_DATA/Big Class.jmp" );


// get data into matrices

x = (Column( "Age" ) << Get Values ) || (Column( "Height" ) << Get Values);
x = J(N Row( x ), 1, 1) || x;
y = Column( "Weight" ) << Get Values;


// regression calculations

xpxi = Inv( x` * x );
beta = xpxi * x` * y; // parameter estimates
resid = y - x * beta; // residuals
sse = resid` * resid; // sum of squared errors
dfe = N Row( x ) - N Col( x );  // degrees of freedom
mse = sse / dfe; // mean square error, error variance estimate


// additional calculations on estimates

stdb = Sqrt( Vec Diag( xpxi ) * mse ); // standard errors of estimates
alpha = .05;
qt = Students t Quantile( 1 - alpha / 2, dfe );
betau95 = beta + qt * stdb; // upper 95% confidence limits
betal95 = beta - qt * stdb; // lower 95% confidence limits
tratio = beta :/ stdb; // Student's T ratios
probt = ( 1 - TDistribution( Abs( tratio ), dfe ) ) * 2; // p-values


// present results

New Window( "Big Class Regression",
	Table Box(
		String Col Box( "Term",{"Intercept", "Age", "Height"} ),
		Number Col Box( "Estimate", beta ),
		Number Col Box( "Std Error", stdb ),
		Number Col Box( "TRatio", tratio ),
		Number Col Box( "Prob>|t|", probt ),
		Number Col Box( "Lower95%", betal95 ),
		Number Col Box( "Upper95%", betau95 ) ) );

ANOVA Example

You can implement your own one-way ANOVA. This example presents a problem involving a three-level factor indicating Low, Medium, and High doses and a response measurement. Therefore, this example solves the general linear model, as follows:

Y = a + bX + e

Where:

Y is a vector of responses

a is the intercept term

b is a vector of coefficients

X is a design matrix for the factor

e is an error term

factor = [1, 2, 3, 1, 2, 3, 1, 2, 3];
y = [1, 2, 3, 4, 3, 2, 5, 4, 3];

First, build a design matrix for the factor:

Design Nom( factor );

[1 0, 0 1, -1 -1, 1 0, 0 1, -1 -1, 1 0, 0 1, -1 -1]

Next, add a column of 1s to the design matrix for the intercept term. You can do this by concatenating J and Design Nom():

x = J( 9, 1, 1) || Design Nom( factor );

[1 1 0,

1 0 1,

1 -1 -1,

1 1 0,

1 0 1,

1 -1 -1,

1 1 0,

1 0 1,

1 -1 -1]

Now, to solve the normal equation, you need to construct a matrix M with partitions:

Equation shown here

You can construct matrix M in one step by concatenating the pieces:

M = ( x` * x || x` * y )
        |/
  ( y` * x || y` * y );

[9 0 0 27,

0 6 3 2,

0 3 6 1,

27 2 1 93]

Now, sweep M over all the columns in XX for the full fit model, and over the first column only for the intercept-only model:

FullFit = Sweep( M, [1, 2, 3] ); // full fit model
InterceptOnly = Sweep( M, [1] ); // model with intercept only

Recall that some of the standard ANOVA results are calculated by comparing the results of these two models. This example focuses on the full fit model, which produces this swept matrix:

[0.111111111111111 0 0 3,

0 0.222222222222222 -0.11111111111111 0.333333333333333,

0 -0.11111111111111 0.222222222222222 0,

-3 -0.33333333333333 0 11.33333333333333]

Examine the model coefficients from the upper right partition of the matrix. The lower left partition is the same, except that the signs are reversed: 3, 0.333, 0. The results can be interpreted as follows:

The coefficient for the intercept term is 3.

The coefficient for the first level of the factor is 0.333.

The coefficient for the second level is 0.

Because of the use of Design Nom(), the coefficient for the third level is the difference, –0.333.

The lower right partition of the matrix holds the sum of squares, 11.333.

You could modify this into a generalized ANOVA script by replacing some of the explicit values in the script with arguments. These results match those from the Fit Model platform.

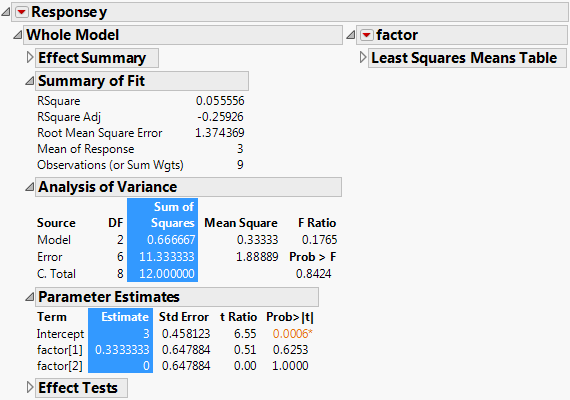

Figure 7.1 ANOVA Report Within Fit Model

ANOVA Report Within Fit Model

Here is how to construct the report in Figure 7.1:

1. Build a data table (described in Data Tables):

dt = New Table( "Data" );
dt << New Column( "y", Set Values( [1, 2, 3, 4, 3, 2, 5, 4, 3] ) );
dt << New Column( "factor", "Nominal", Values( [1, 2, 3, 1, 2, 3, 1, 2, 3] ) );

2. Run a model (described in Launch the Analysis and Save the Script to a Window):

obj = Fit Model(
	Y( :y ),
	Effects( :factor ),
	Personality( "Standard Least Squares" ),
	Run(
		y << {Plot Actual by Predicted( 0 ), Plot Residual by Predicted( 0 ),
		Plot Effect Leverage( 0 )}
	)
);

3. Use JSL techniques for navigating displays (described in Get References to Display Box Objects):

ranova = obj << Report;
ranova[Outline Box( 6 )] << Close( 0 );
ranova[Outline Box( 7 )] << Close( 1 );
ranova[Outline Box( 9 )] << Close( 1 );
ranova[Outline Box( 5 ), Number Col Box( 2 )] << Select;
ranova[Outline Box( 6 ), Number Col Box( 1 )] << Select;

The result is shown in Figure 7.1.
