Example of a Bubble Plot with a Categorical Y Variable

All of the examples so far use continuous Y variables. If you use a categorical (nominal or ordinal) Y variable, the bubble plot appears differently. This example contains data that shows the price of commodities over several years in US dollars. Because the value of the dollar changes over time, a column named Price/Price2000 shows the ratio of a commodity’s price at any given time to the price in the year 2000.

1. Select Help > Sample Data Folder and open blsPriceData.jmp.

2. Select Graph > Bubble Plot.

3. Select Series and click Y.

4. Select Price/Price2000 and click X.

5. Select date and click Time.

6. Click OK.

The report window appears. (Figure 5.15 uses the JMP default colors.)

This produces a bubble plot that, when animated by clicking the play button, shows the price bubbles moving side to side according to their price ratio.

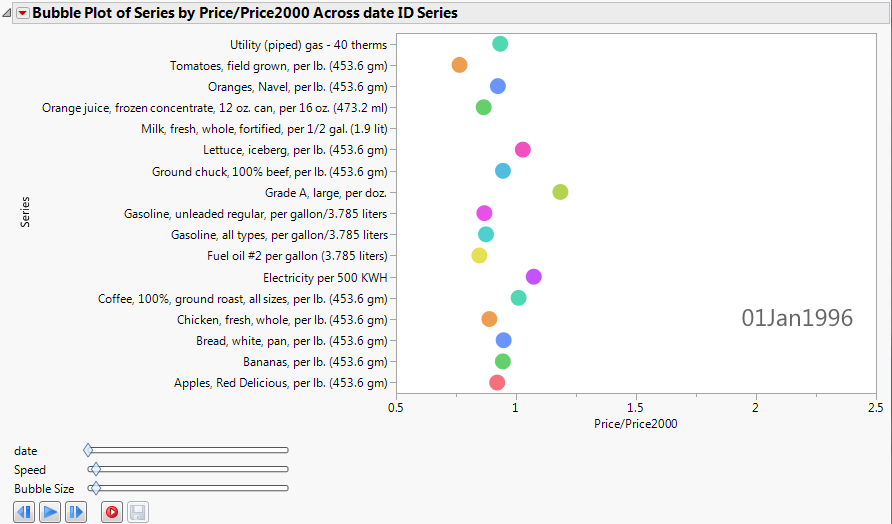

Figure 5.15 Static Example of Animated Bubbles

Static Example of Animated Bubbles

For easier readability, add grid lines:

7. Double-click the categorical axis.

8. In the Y Axis Settings window, select Show Grid.

9. Click OK.

To animate the bubble plot, click the play button. The price bubbles move side to side, according to their price ratio.
