Import Tables that JMP Does Not Auto-Detect

Sometimes tables in PDF files cannot be auto-detected. In these cases, you can drag boxes around the columns to group and divide tables.

Figure 3.25 Partial PDF File Preview

Partial PDF File Preview

Notice that rows in the first column were auto-detected as three tables.

Drag the top edge of the third table up until it surrounds the two columns.

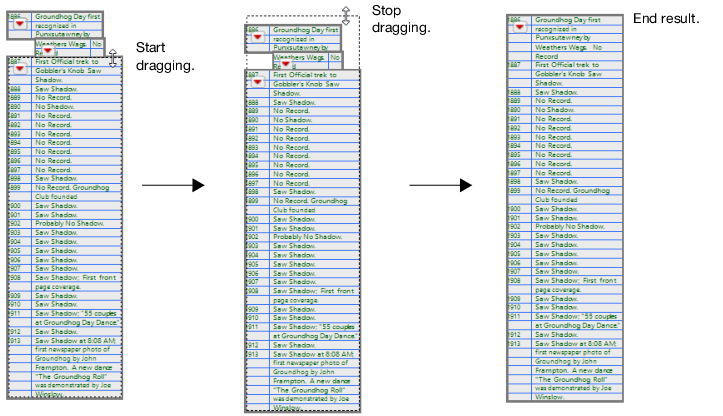

Figure 3.26 Creating One Table

Creating One Table

In the first table shown in Figure 3.27, drag the far right border to the left until only columns one and two are in the same table,and columns 3 and 4 are outside the table (Figure 3.27).

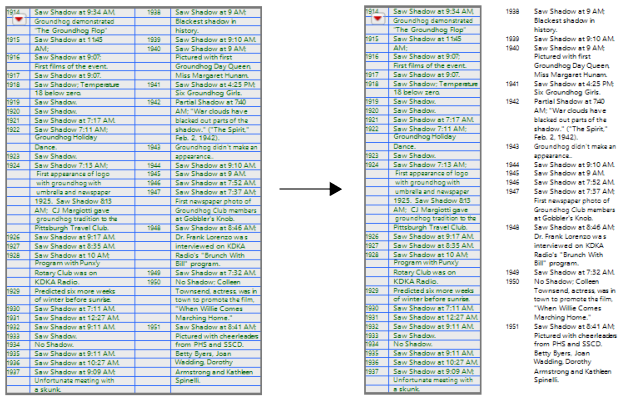

Figure 3.27 Splitting Up a Table

Splitting Up a Table

Drag a box around the remaining two columns to put them in a table (Figure 3.28).

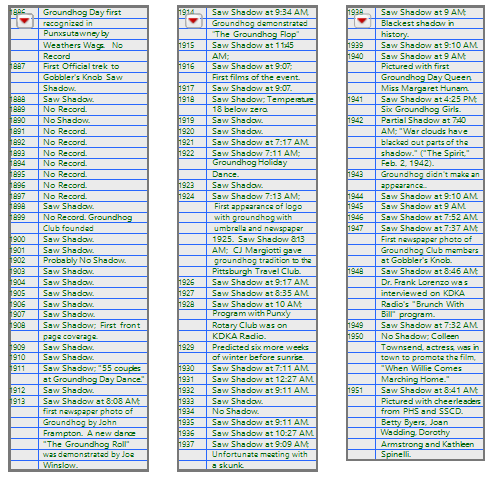

Figure 3.28 Final Tables on Page One

Final Tables on Page One

Note: Groundhog Day Predictions.pdf in the Samples/Import Data folder shows a cleaned-up version of the data that is auto-detected in the PDF Import Wizard.
