Saving and Retrieving Limits

You can use the following previously established control limits for legacy control charts:

upper and lower control limits and a center line value

parameters for computing limits, such as a mean and standard deviation

The control limits or limit parameter values must be either in a JMP data table, referred to as the Limits Table, or stored as a column property in the process column. When you specify the Control Chart command, you can retrieve the Limits Table with the Get Limits button on the Control Chart launch window.

Tip: To add specification limits to several columns at once, see Manage Limits.

The easiest way to create a Limits Table is to save results computed by the Control Chart platform. The Save Limits command in the red triangle menu for each control chart automatically saves limits from the sample values. The type of data saved in the table varies according to the type of control chart in the analysis window. You can also use values from any source and create your own Limits Table.

All Limits Tables must have:

A column of special keywords that identify each row.

A column for each of the variables whose values are the known standard parameters or limits. This column name must be the same as the corresponding process variable name in the data table to be analyzed by the Control Chart platform.

The following table describes the limit keywords and their associated control chart for both legacy control charts and charts created with Control Chart Builder.

Table 14.1 Limits Table Keys with Appropriate Charts and Meanings

Keywords

For Charts

Meaning

_KSigma

All except Control Chart Builder and V-Mask CUSUM

multiples of the standard deviation of the statistics to calculate the control limits; set to missing if the limits are in terms of the alpha level

_Alpha

All except Control Chart Builder

Type I error probability used to calculate the control limits

_Range Span

IM, MR, MMR

number of consecutive measurements for which moving ranges are computed. Not applicable in the Control Chart Builder platform, where the range span is always equal to 2.

_Sample Size

All except Levey-Jennings and Presummarize

subgroup size

_Std Dev

XBar, R, S, IM, MR, G, T, V-Mask CUSUM, and Levey-Jennings

known process standard deviation

_U

C, U

known average number of nonconformities per unit

_P

NP, P

known value of average proportion nonconforming

_LCL, _UCL

XBar, IM, P, NP, C, U, G, T, and Levey-Jennings

lower and upper control limit for Mean Chart, Individual Measurement chart, or any attribute or rare event chart

_AvgR

R, MR

average range or average moving range

_LCLR, _UCLR

R, MR

lower control limit for R or MR chart

upper control limit for R or MR chart

_AvgS, _LCLS, _UCLS

S Chart

average standard deviation, upper and lower control limits for S chart

_AvgR_PreMeans

_AvgR_PreStdDev

_LCLR_PreMeans

_LCLR_PreStdDev

_UCLR_PreMeans

_UCLR_PreStdDev

_Avg_PreMeans

_Avg_PreStdDev

_LCL_PreMeans

_LCL_PreStdDev

_UCL_PreMeans

_UCL_PreStdDev

IM, MR

Mean, upper, and lower control limits based on pre-summarized group means or standard deviations.

_Data Units

_Two Sided

_Headstart

_Beta

_Delta

V-Mask CUSUM

specifications for V-Mask CUSUM chart

You can save limits in a new data table or as properties of the response column. When you save control limits using the in New Table command, the limit keywords written to the table depend on the current chart types displayed.

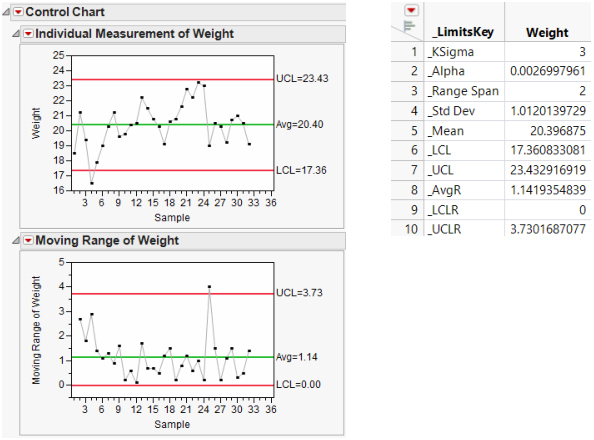

Figure 14.16 shows examples of control limits saved to a data table using Coating.jmp. The rows with values _Mean, _LCL, and _UCL are for the Individual Measurement chart. The values with the R suffix (_AvgR, _LCLR, and _UCLR) are for the Moving Range chart. If you create these charts again using this Limits Table, the Control Chart platform identifies the appropriate limits from keywords in the _LimitsKey column.

Figure 14.16 Example of Saving Limits in a Data Table

Example of Saving Limits in a Data Table

Note that values for _KSigma, _Alpha, and _Range Span can be specified in the Control Chart Launch window. JMP always looks at the values from the window first. Values specified in the window take precedence over those in an active Limits Table.

Rows with unknown keywords and rows marked with the excluded row state are ignored. Except for _Range Span, _KSigma, _Alpha, and _Sample Size, any needed values not specified are estimated from the data.
