Example of Control Chart Builder

The Socket Thickness.jmp sample data table contains measurements for the thickness of sockets. There has been an increase in the number of defects during production and you want to investigate why this is occurring. This example illustrates how to perform this investigation in Control Chart Builder using either the interactive approach or the launch window approach. The second approach is best if you know which type of control chart you want to build.

Control Chart Builder Interactive Method

Use the interactive Control Chart Builder workspace to investigate the variability in the data and the control of the process.

1. Select Help > Sample Data Library and open Quality Control/Socket Thickness.jmp.

2. Select Analyze > Quality and Process > Control Chart Builder.

3. Drag Thickness to the Y zone.

4. Drag Hour to the Subgroup zone (at bottom).

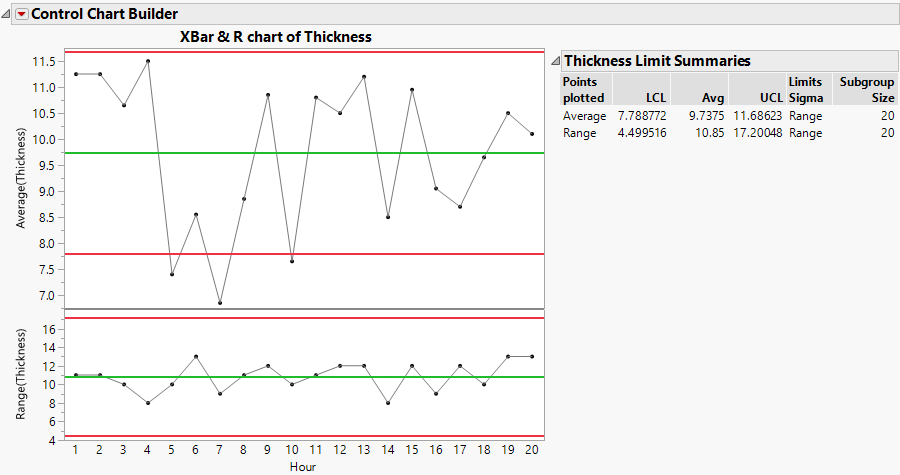

Figure 3.2 Control Charts for Socket Thickness

Looking at the Average chart, you can see that there are several points below the lower control limit of 7.788772. You want to see whether another variable might be contributing to the problem.

5. Drag Cavity into the Phase zone.

6. Click Done.

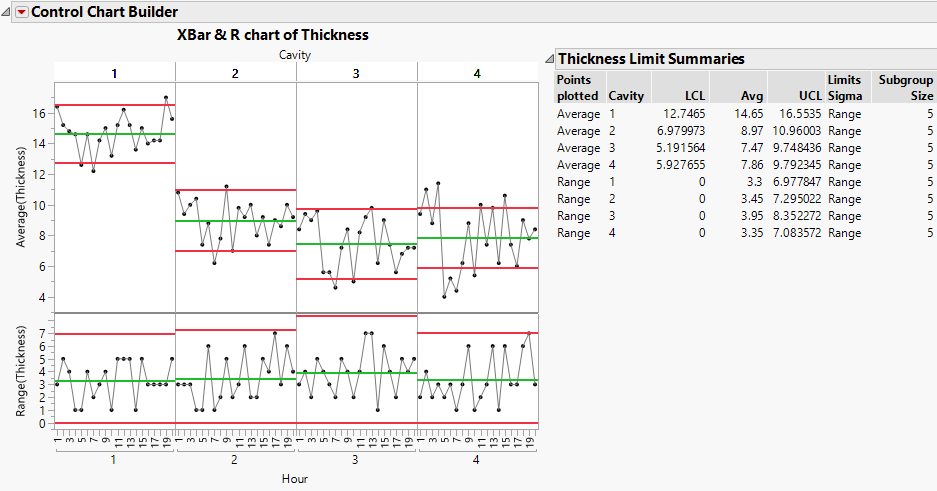

Figure 3.3 Control Charts for Each Cavity

From the Average chart, you can conclude the following:

There are differences between the cavities, indicating the need for separate control limits for each cavity.

Cavity 1 is producing sockets with a higher average thickness, indicating that further investigation of the differences between cavities is warranted.

All of the cavities have points that are outside the control limits. Therefore, you should investigate the lack of control in the data for each cavity.

The Range chart for each cavity shows that the within-subgroup measurements are in control.

Control Chart Builder Launch Window Method

Use the XBar Control Chart launch window to obtain the same chart as Figure 3.3.

1. Select Help > Sample Data Library and open Quality Control/Socket Thickness.jmp.

2. Select Analyze > Quality and Process > Control Chart > XBar Control Chart.

3. Select Thickness and click Y.

4. Select Hour and click Subgroup.

5. Select Cavity and click Phase.

6. Click OK.

You should see the same control chart that appears in Figure 3.3.
