Configuration Settings

Each component in a Reliability Block Diagram can be assigned a failure distribution. The available failure distributions are listed in Table 11.2. To see the formulas and parameterization for these failure distributions, see Distributions in the Life Distribution section.

Distribution Configurations

When a component is added to the diagram, an outline for that component appears beneath the Configuration outline.

Note: You can omit a component from the analysis by checking the box next to Omit.

Select a Distribution and enter the required parameter values.

Table 11.2 Distributions and Parameters

Property Type

Required Inputs

Exponential

Theta

Weibull

Alpha, Beta

Lognormal

location, scale

Loglogistic

location, scale

Fréchet

location, scale

GenGamma

mu, sigma, lambda

DS Weibull

Alpha, Beta, Defective Probability

DS Lognormal

location, scale, Defective Probability

DS Loglogistic

location, scale, Defective Probability

DS Fréchet

location, scale, Defective Probability

Nonparametric

data or data file

To view Configuration settings for the components in a selected design or subsystem, do the following:

To view the Configuration settings for a specific component, select the component’s shape.

To view Configuration settings for more than one component, select multiple components’ shapes using the Arrow tool or pressing Control and clicking.

To view Configuration settings for all components, deselect any shapes by clicking in a blank portion of the Workspace.

For each component in the diagram, you can either omit the component from calculations by checking the box next to Omit or:

From the Distribution list, select the appropriate distribution. For all selections other than Nonparametric, enter parameter values for the distribution. For Nonparametric, see Specify a Nonparametric Distribution.

For Series and Parallel components, you must also enter a value for N, the total number of components contained in the series or parallel shape.

For K out of N components, you must also enter K, the minimum number of components that must function for the system to function, and N, the total number of components in the shape.

For Knot components, enter the Minimum Available Dependences. The Knot shape enables you to configure a k-out-of-n shape where the shapes that are joined have different distributions. The Minimum Number of Dependencies is k, the minimum number of paths leading to the Knot that need to function in order for the system to function.

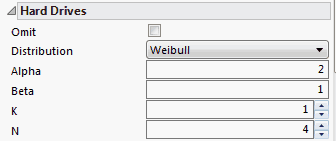

Figure 11.16 Example of a Weibull Configuration for a K out of N Shape
