Contour Plots

View Multidimensional Relationships in Two Dimensions

The Contour Plot command in the Graph menu constructs contours of a response in a rectangular coordinate system. A contour plot shows a three-dimensional surface in two dimensions. Contours delineate changes in the third dimension.

Here are some of the options available with the Contour platform:

specify the number of contour levels

choose to plot contour lines or filled contours

show or hide data points

label contours with response values

define and use a custom coloring scheme

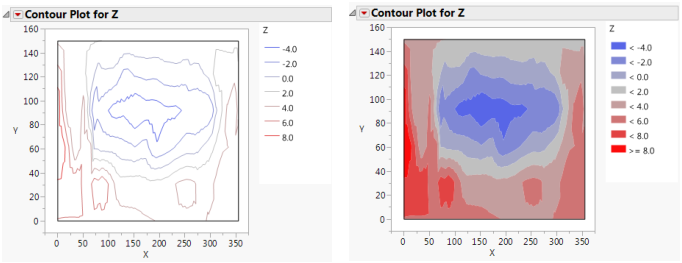

Figure 10.1 Examples of Contour Plots
