Reliability and Survival Methods > Reliability Block Diagram > Example Using the Reliability Block Diagram Platform > Configure Components
Publication date: 11/29/2021

Image shown hereConfigure Components

1. In the Configuration panel, enter the Configuration settings for the components. See Configuration Settings.

Table 11.1 Configuration Settings

Component

Settings

Power Supply

• Distribution—Exponential

• Theta—1

CPU

• Distribution—Exponential

• Theta—1

Peripherals

• Distribution—Weibull

• Alpha—1

• Beta—2

• N—3

Hard Drives

• Distribution—Weibull

• Alpha—2

• Beta—1

• K—1

• N—4

Join

Minimum available—1

Input Devices

• Distribution—Fréchet

• Location—0

• Scale—1

• N—2

Monitor

• Distribution—Exponential

• Theta—1

The Reliability Block Diagram is complete (Figure 11.11).

2. Select Run.

The system’s reliability information is updated. This is reflected in the Distribution plot in the Profiler pane.

3. To save the Reliability Block Diagram as a JMP Scripting Language (JSL) file, select File > Save and name it exampleRBDcomplete.jsl.

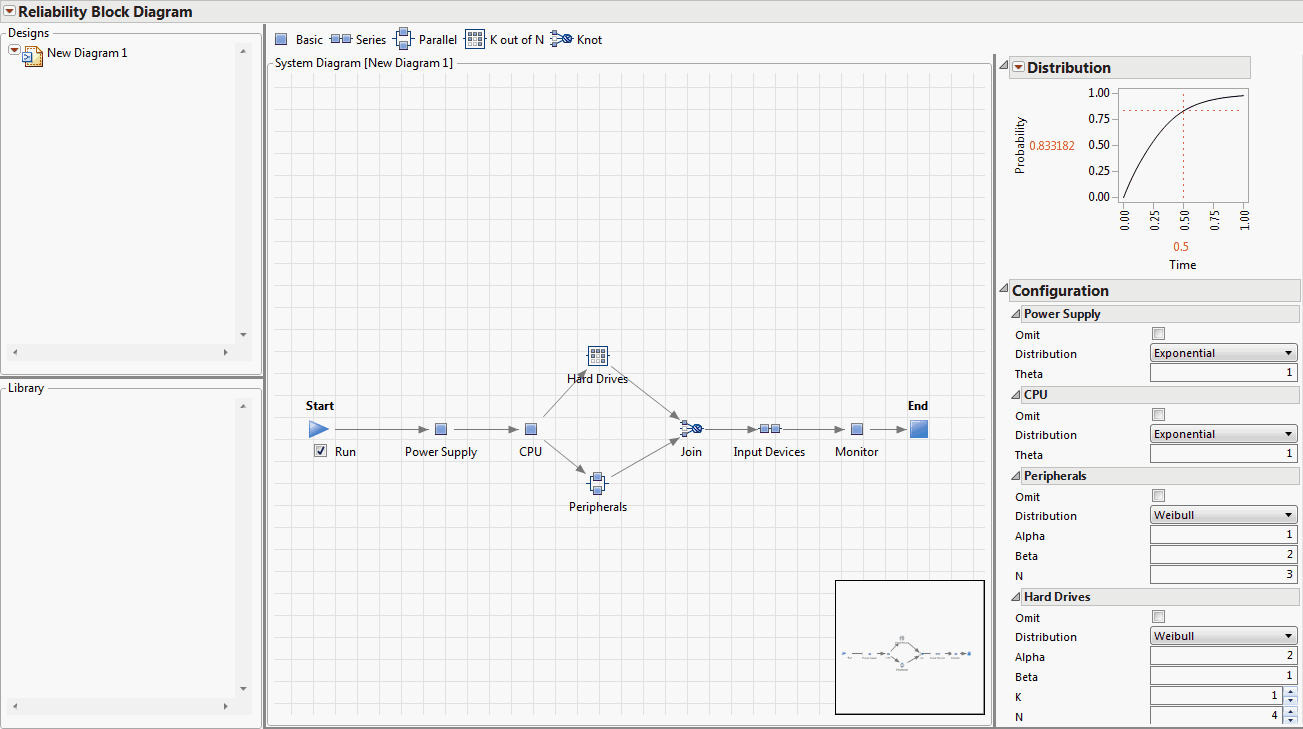

Figure 11.11 Example Reliability Block Diagram

Example Reliability Block Diagram
