Evaluate Design Launch Window

To launch the Evaluate Design platform, open the data table of interest and select DOE > Design Diagnostics > Evaluate Design. The example in Figure 15.10 uses the Bounce Data.jmp sample data table, located in the Design Experiment folder.

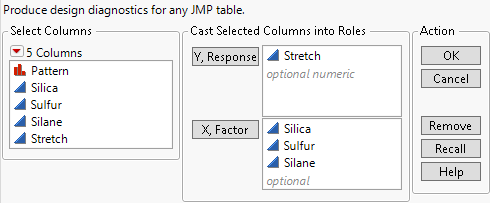

Figure 15.10 Evaluate Design Launch Window

Evaluate Design Launch Window

The launch window contains the following buttons:

Y, Response

Enter the response column or columns. Entering a response is optional. Response values are not used in evaluating the design. Responses must be numeric.

X, Factor

Enter the factor columns. Factors can be of any Data Type or Modeling Type.
