Fonts Preferences

Font preferences customize the appearance of reports, data tables, and scripts, including fonts, text size, and font style.

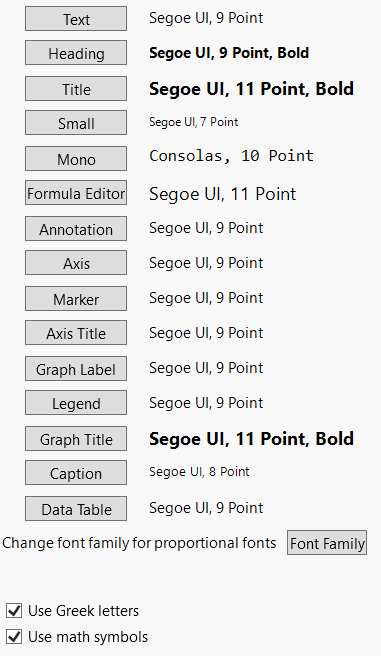

Figure 13.14 Fonts Preferences

Fonts Preferences

Table 13.14 Preferences on the Fonts Page

Preference

Description

Text

Sets the font for the text portion of a JMP analysis report. The default setting is Segoe UI, 9 Point.

Heading

Sets the font for the heading of columns in an analysis report and a data table. The default setting is Segoe UI, 9 Point Bold.

Title

Sets the font for the title shown in all title bars. The default setting is Segoe UI, 11 Point, Bold.

Small

Sets the font for small text, which is used in the upper left corner of the data grid to show the number of columns and rows. The default setting is Segoe UI, 7 Point.

Mono

Sets the font used in the JMP Scripting Language (JSL) editor and editor boxes for script commands. The default setting is Consolas, 10 Point.

Formula Editor

Sets the font for the expressions entered into the Formula Editor. The default setting is Segoe UI, 11 Point.

Annotation

Sets the default font used in annotations. The default setting is Segoe UI, 9 Point.

Axis

Sets the font used for the axis tick labels. The default setting is Segoe UI, 9 Point.

Marker

Sets the font used for alphanumeric markers. The default setting is Segoe UI, 9 Point.

Axis Title

Sets the font for axis titles. The default setting is Segoe UI, 9 Point.

Graphic Label

Sets the font for data labels in graphs such as marker labels or bar labels. The default setting is Segoe UI, 9 Point.

Legend

Sets the font for legend titles, values, and other legend text. The default setting is Segoe UI, 9 Point.

Graph Title

Sets the font for the main graph title but not the secondary title or footnote. The default setting is Segoe UI, 11 Point, Bold.

Caption

Sets the font for the caption element and also any caption-like text (for example, line of fit statistics and the box plot 5-number summary). The default setting is Segoe UI, 8 Point.

Data Table

Sets the font for displaying data in the data table. The default setting is Segoe UI, 9 Point.

Font Family

Select a proportional font. The font that you select is immediately applied to all settings except for Mono, which is used for scripts.

Use Greek letters

Select this option to use Greek letters instead of spelling out Greek letters (for example, π instead of pi.) This option is selected by default.

Use math symbols

Select this option to use math symbols instead of simple text representations of math symbols (for example, ± instead of +/-) This option is selected by default.
