Launch a Legacy Control Chart Platform

When you launch a legacy control chart platform by selecting Analyze > Quality And Process > Legacy Control Charts, a launch window similar to Figure 14.3 appears. The specific controls vary depending on which type of chart you select. Initially, the window shows the following types of information:

Process Information for measurement variable selection

Chart type information (for more information, see Overview of Legacy Control Charts)

Limits Specifications

Specified Statistics

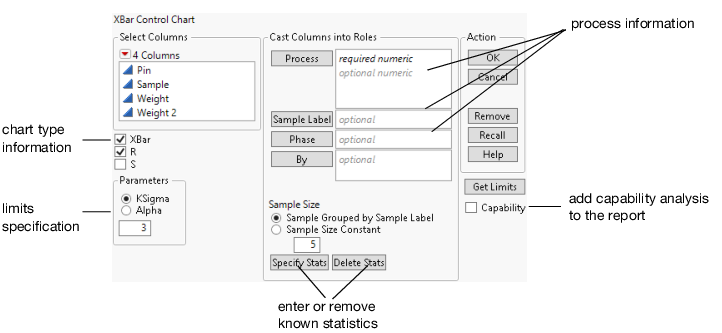

Figure 14.3 XBar Control Chart Launch Window

XBar Control Chart Launch Window

For more information about the options in the Select Columns red triangle menu, see Column Filter Menu in Using JMP.
